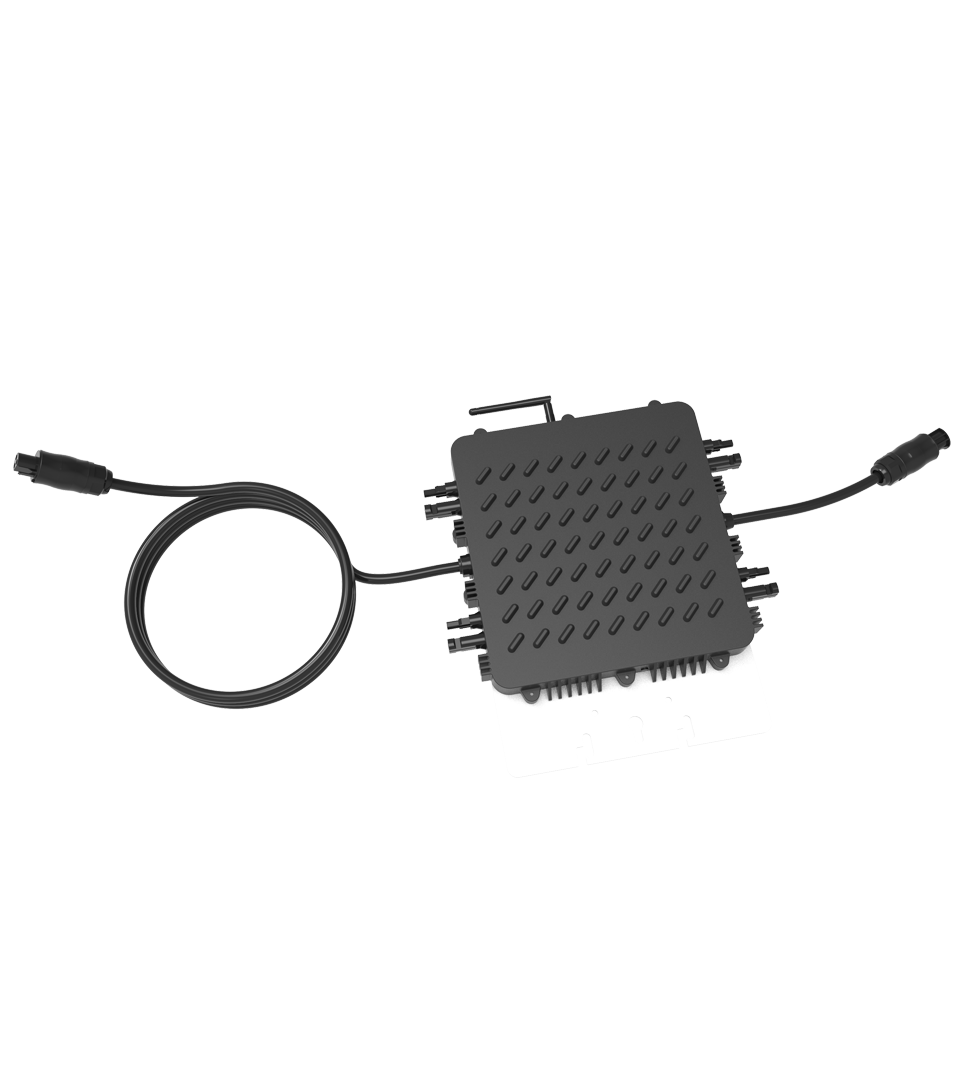

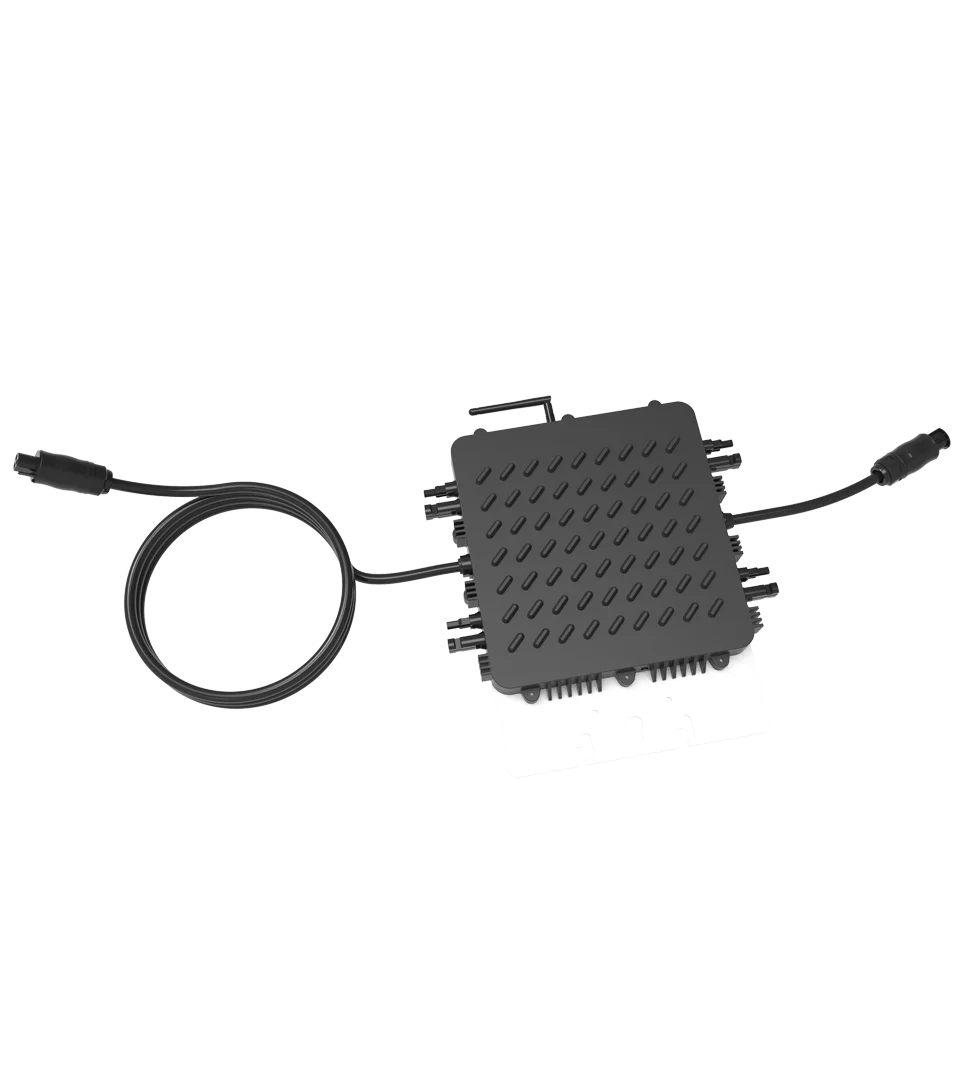

1200w Micro-Inverter, solar inverter, 4MPPT (SUN1200G-230-EU )
$200~$220
Min.Order
10
Pack / Packs
Model Number: SUN1200G-230-EU
Payment Type:
T/T,
Paypal,
Western,
Others,
Trade Terms:
CIP,
Min. Order: 10
Size: 298.5W*287H*36D
Color: 黑色
Product Attributes
Company Profile
Logistics and other information
VR link:
Quality certification:
- Country of origin: Zhejiang,china
- Brand: Deye
- HS code:
- Yield: 20000 Piece/Pieces per Year
- Type of shipping: ocean shipping air transport express land transportation
- Port of shipment: ningbo shanghai foshan
- Supply capacity: 20000 Piece/Pieces per Year
- Packing method: carton
Packaging picture: ![]()
Product Details

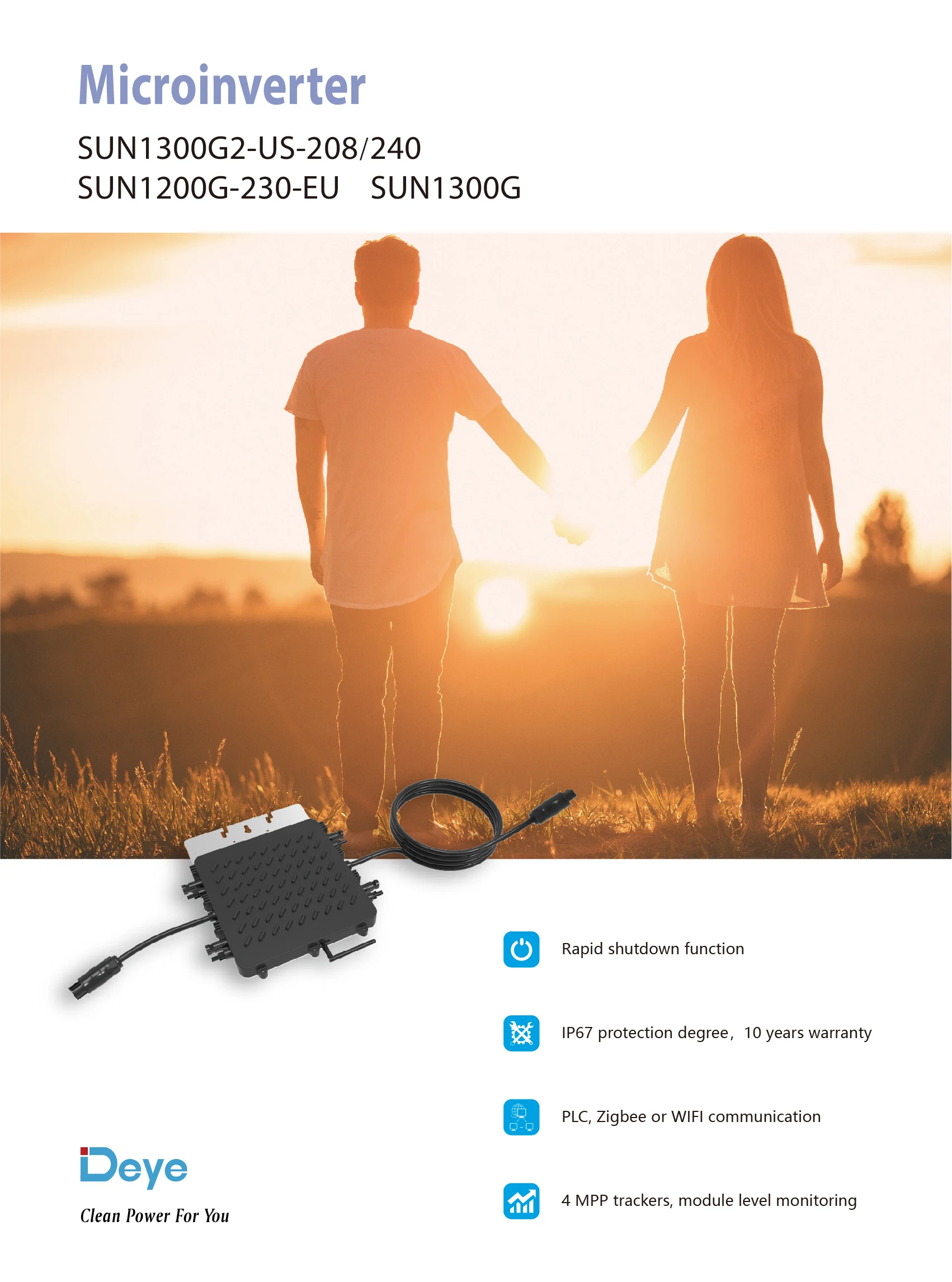

Microinverter
SUN 1200-1300G | 1200-1300W | Single Phase | 4 MPPT | Micro-inverter | Rapid Shutdown
The series microinverter features low startup voltage of 20V and Max. DC input volage of 60V. Module-level monitoring providing each panel’s performance data, faster O&M. With built-in WIFI module, easier installation and commissioning for installer. Also, it supports various output voltage and frequency, 127/208/240V@60Hz, 230V/50Hz.
|
Model |
SUN1200G-230-EU |
SUN1300G2-US-208/240 | SUN1300G |
|
Input Data (DC) |
|||
|
Recommended input Power (STC) |
210~400W (4 Pieces) |
||
|
Maximum input DC Voltage |
60V |
||
|
MPPT Voltage Range |
25~55V |
||
|
Operating DC Voltage Range |
20~60V |
||
|
Max. DC Short Circuit Current |
13A |
13A | 14A |
|
Max. input Current |
10.4A×4 |
||
|
Output Data (AC) |
|||
|
Rated output Power |
1300W |
||
|
Maximum output Power |
1300W |
||
|
Maximum output Current |
4.3A |
6.3A / 5.4A | 5.9A |
|
Nominal Voltage / Range |
184~265V |
208V / 183~229V 240V / 211~264V |
176~242V |
|
Nominal Frequency / Range |
50.0 / 47.5~51.5Hz |
60.0 / 59.3~60.5Hz | 60.0 / 59.3~60.5Hz |
|
Extended Frequency/Range |
50.0 / 45~55Hz |
60.0 / 55~65Hz | 60.0 / 55~65Hz |
|
Power Factor |
>0.99 |
||
|
Maximum units per branch |
5 |
4 | 4 |
|
Efficiency |
|
|
CEC Weighted Efficiency |
95% |
|
Peak Inverter Efficiency |
96.5% |
|
Static MPPT Efficiency |
99% |
|
Night Time Power Consumption |
50mW |
|
Mechanical Data |
|
|
Ambient Temperature Range |
-40~65℃ |
|
Size (mm) |
298.5W×287H×36D (Without mounting bracket and cable) |
|
Weight (kg) |
6.3 |
|
Cooling |
Natural cooling |
|
Enclosure Environmental Rating |
IP67 |
|
Features |
|
|
Compatibility |
Compatible with 60~72 cell PV modules |
|
Communication |
Power line / WIFI / Zigbee |
|
Compliance |
UL1741,VDE0126,VDE4105,IEC62109,CE,INMETRO |
|
Warranty |
10 years |
