1600w Micro-Inverter, solar inverter, 4 MPPT (SUN1600G3-EU-230 )
$200~$230
Min.Order
10
Piece / Pieces
Model Number: SUN1600G3-EU-230
Payment Type:
T/T,
Paypal,
Western,
Trade Terms:
CIP,
Min. Order: 10
Size: 267W*300H*42.5D
Product Attributes
Company Profile
Logistics and other information
VR link:
Quality certification:
- Country of origin: Zhejiang,china
- Brand: Deye
- HS code:
- Yield: 20000 Piece/Pieces per Year
- Type of shipping: ocean shipping land transportation air transport
- Port of shipment: ningbo shanghai jinhua
- Supply capacity: 20000 Piece/Pieces per Year
- Packing method: carton
Packaging picture: ![]()
Product Details

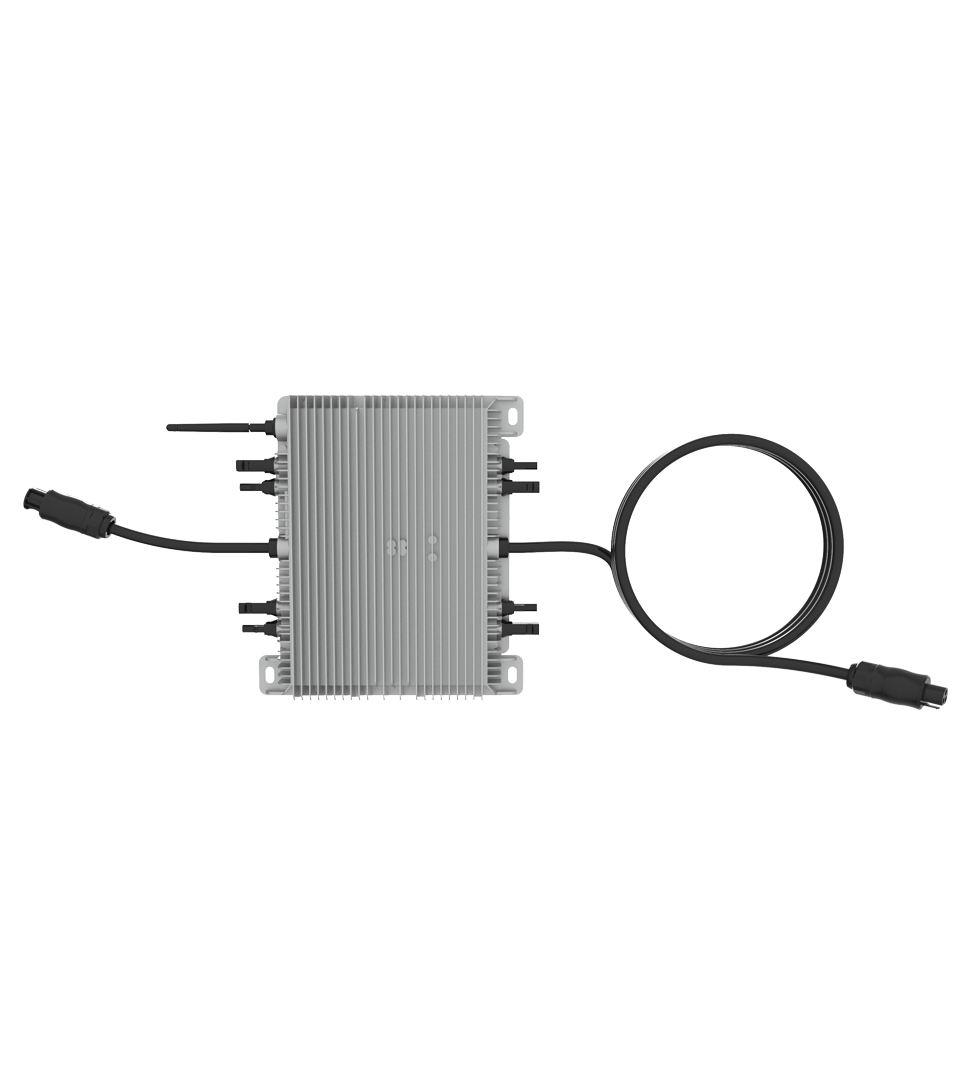

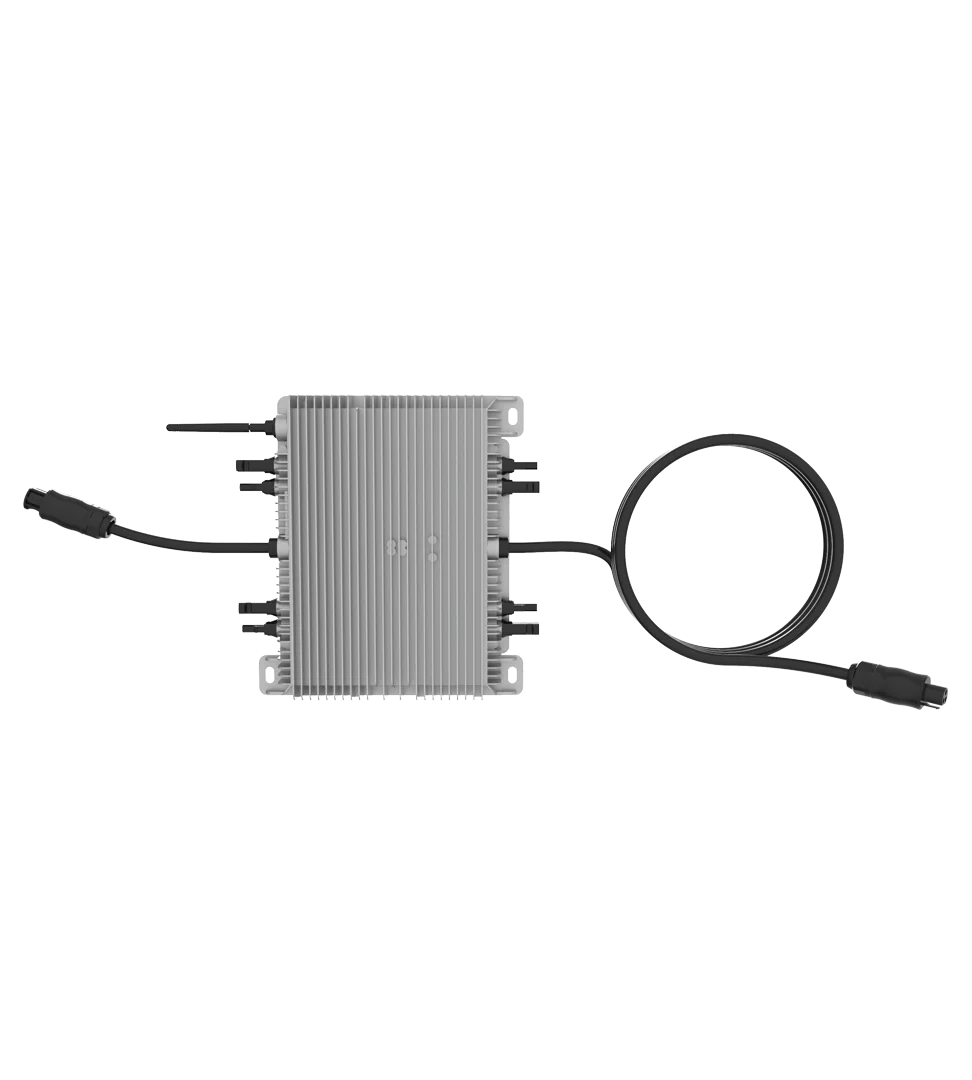

Microinverter
SUN1300-2000G3-EU-230 | 1300-2000W | Single Phase | 4 MPPT | Micro-inverter | Rapid Shutdown
The SUN 1300-2000G3 is a new generation grid-tied microinverter with intelligent networking and monitoring systems to ensure maximum efficiency. High efficiency, high reliability of the SUN 1300-2000G3 with 4 independent MPPT inputs, Maximum AC output power reaching 2000W. It comes with 2pcs AC cables, while in parallel, a great flexibility on the installation.
|
Model |
SUN1300G3-EU-230 |
SUN1600G3-EU-230 |
SUN1800G3-EU-230 |
SUN2000G3-EU-230 |
|
Input Data (DC) |
||||
|
Recommended input Power (STC) |
210~400W (4 Pieces) |
210~600W (4 Pieces) |
210~600W (4 Pieces) |
210~600W (4 Pieces) |
|
Maximum input DC Voltage |
60V |
|||
|
MPPT Voltage Range |
25~55V |
|||
|
Operating DC Voltage Range |
20~60V |
|||
|
Max. DC Short Circuit Current |
16A |
|||
|
Max. input Current |
10.5A×4 |
12.5A×4 | 12.5A×4 | 12.5A×4 |
|
Output Data (AC) |
||||
|
Rated output Power |
1300W |
1600W |
1800W |
2000W |
|
Maximum output Power |
1430W |
1760W |
1980W |
2200W |
|
Maximum output Current |
6.2A |
7.7A |
8.6A |
9.6A |
|
Nominal Voltage / Range |
230V / 184-265V |
|||
|
Nominal Frequency / Range |
50 / 60Hz |
|||
|
Extended Frequency/Range |
45~55Hz / 55~65Hz |
|||
|
Power Factor |
>0.99 |
|||
|
Maximum units per branch |
4 |
4 |
3 |
3 |
|
Efficiency |
|
|
CEC Weighted Efficiency |
95% |
|
Peak Inverter Efficiency |
96.5% |
|
Static MPPT Efficiency |
99% |
|
Night Time Power Consumption |
50mW |
>
|
Mechanical Data |
|
|
Ambient Temperature Range |
-40~65℃ |
|
Size (mm) |
267W×300H×42.5D (Without mounting bracket and cable) |
|
Weight (kg) |
5.2 |
|
Cooling |
Natural cooling |
|
Enclosure Environmental Rating |
IP67 |
|
Features |
|
|
Compatibility |
Compatible with 60~72 cell PV modules |
|
Communication |
Power line / WIFI / Zigbee |
|
Compliance |
EN50549,VDE0126,VDE4105,IEC62109,CE,INMETRO |
|
Warranty |
10 years |
