10pcs Automatic Pipe Fitting Counting and Packing Machine

Home

Packaging Machine

10pcs Automatic Pipe Fitting Counting and Packing Machine

$13000~$13950

Min.Order 1 Set / Sets

Model Number: DXDLS420T2

Payment Type: L/C, T/T, Paypal, Money,

Trade Terms: FOB, CFR, CIF,

Min. Order: 1

Contact Supplier

Favorite

Inquiry Basket

Product Attributes

Company Profile

Logistics and other information

VR link:

Quality certification:

Country of origin: Shanghai,China
Brand: Huihe
HS code:
Yield:

Type of shipping: ocean shipping
Port of shipment: Shanghai
Supply capacity: 200 Set/Sets per Month
Packing method: Packed into one standard export wooden case

Product Details

Overview

Quick Details

Warranty:: 1 Year

Type:: Other

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Retail, Construction works , Advertising Company

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: None

Showroom Location:: None

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: PLC, Engine, Motor

Condition:: New

Application:: Machinery & Hardware

Packaging Type:: Bags, Film, Foil, Pouch, Bag

Packaging Material:: Plastic

Automatic Grade:: Automatic

Driven Type:: Mechanical

Voltage:: 380V/220V,50Hz, 380V/220V,50Hz

Power:: 4Kw

Place of Origin:: Shanghai, China

Brand Name:: Huihe

Weight:: 800kg

Dimension(L*W*H):: Customizing

Certification:: CE;ISO

Key Selling Points:: Multifunctional

Pipe Fitting Counting Packing Machine:: for screw,, nail, nut, gasket, short rivets, fastener

Bag type:: back side sealing

Quantity range:: 50g-5kg

Bag length:: 50-300mm

Bag width:: 50-200mm

Packing speed:: 4-12bags/min

Dimension:: Customizing

Film:: Composite film

Supply Ability

Supply Ability: 200 Set/Sets per Month

Packaging & Delivery

Packaging Details: Packed into one standard export wooden case

Port: Shanghai

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	25	To be negotiated

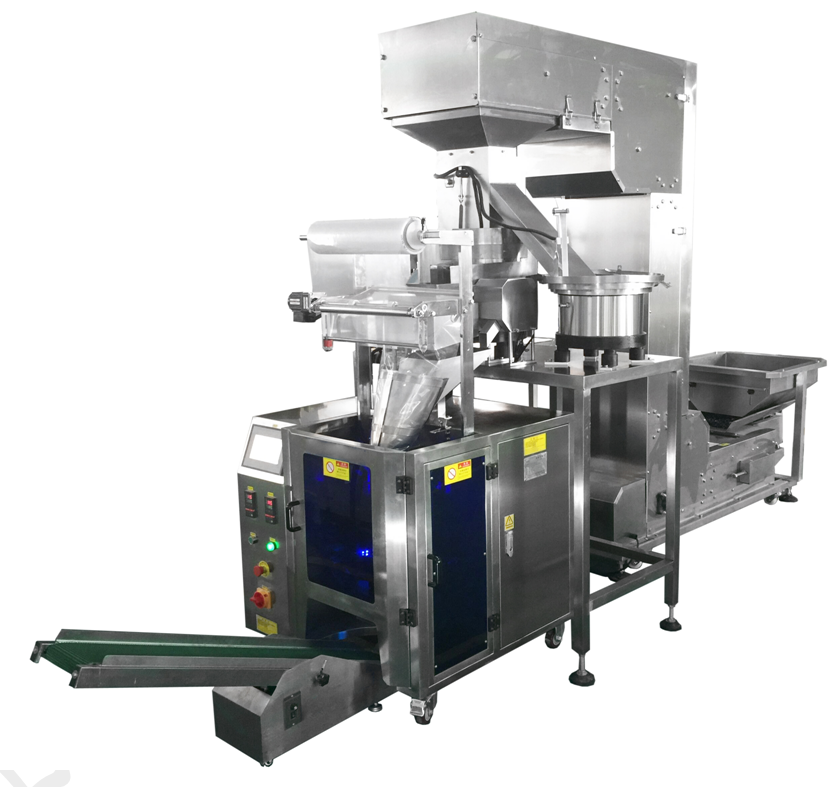

DXDLS420T2 Automatic Pipe Fitting Counting and Packing Machine

Application

Suit for packing hardware, small plastic parts, short screw,, nail, nut, gasket, short rivets, fastener, electron component, drug pills, chemical granules etc.

Features

7inch Chinese color screen, FACON programmable PLC controlling system, intelligent temperature controller controlling, machine with stainless steel, separate vibration tray support, automatic material feeding, can finish the function of measuring, bag forming, filling, bag sealing, bag cutting, and counting. Can set the parameter automatically, such as weight(namely quantity),bag length, product counting, zero clearing etc. Pneumatic back side straight edge sealing. Machine will stop automatically when without material or empty bag. Can be 3sides sealing or back side sealing type, but we suggest back side sealing.

Packing material

polypropylene/polyethylene aluminium foil/Polyethylene, polyester/aluminizing/Polyethylene, nylon/Enhanced polyethylene, paper/Polyethylene, tea-leaf filtering paper etc.

Specification

Packing material	OPP/CPP,CPP/PE,PE such materials can be heat sealed(≤320)
Suit for packing	granule products, hardware, small plastic parts, fastener etc.
Material request	size must be the same, and no other sundries mixed.
Capacity	4-12bags/min(depends on the packing quantity, and material fluidity )
Bag size	Max. width should be within 200mm(can adjust the width through change the bag former) Max. length should be within 180mm(can be 350mm through 2times bag pulling )
Bag forming system	bag forming, pneumatic sealing, pneumatic cutting.
Product length range	within 40mm
Product size range	within 20mm
Weighing range	50g-5Kg(depends on the product gravity and bag size)
Bag former	Back side sealing
Bag size	(bag length 50-300mm*bag width50-200mm)
Cutting type	zigzag cutter cutting
Sealing embossing	straight or zigzag sealing can choose from
Sealing edge width	5-10mm can choose from
Bag length control	screen setting, eye mark tracking
Air exhaust	pinhole exhaust or sponge exhaust
Machine size	4m1.3m2.4m
Voltage	220V50HZ
Air Pressure	0.4-0.8Mpa

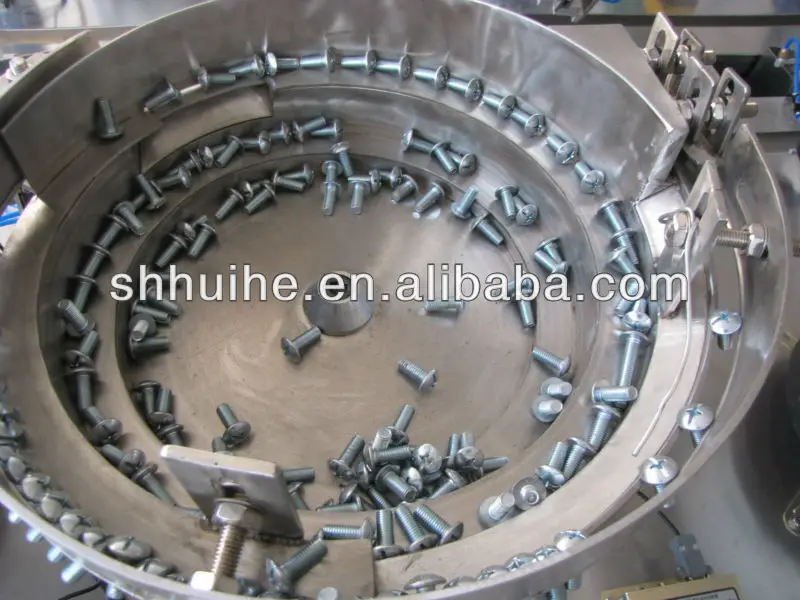

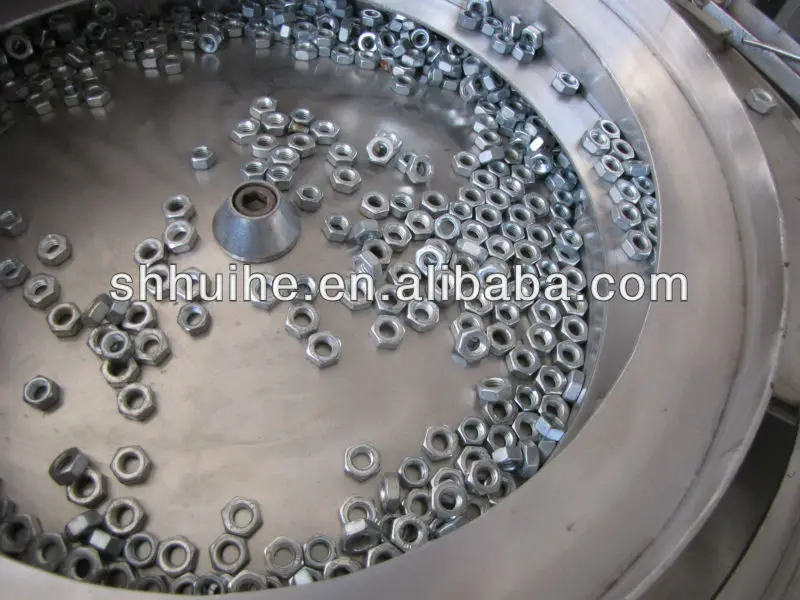

Feeding part

Our packing sample

10pcs Automatic Pipe Fitting Counting and Packing Machine

After Sales Service:

1.Guaranty: One Year.

2.One set of consumable accessories will be provided with the machine.

3.Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.

4.All spare parts are always available for delivery.

5.Manual is in English.

Installation/ Training

If really dont know how to install and operate after showing the video and telephone instruction, you can ask for installation from us. It must be after shipment till the machine has arrived and factory must be ready equipped with all necessary requirements before booking installation. Our engineers will come to the site for the complete and final installation. During the installation session, a one-day training course will be provided to our customers about operation and maintenance procedure. The following costs should be paid by the buyer, including engineer's all local transportation, accommodation, and air tickets (round trip).

Payment terms

Choose the machine type → Goods delivery :(FOB,CIF,CFR,EXW) → Payment term :30% down payment as for ordering the machine (or 100 % payment that can save time ) → Confirmed the machine requirement → Based on your requested to producing machine→ Though video chat or send machine picture or directly come to inspection in our factory → Pay the rest of balance 70% → Arrange the shipment .(If need more technical support ,please contact our services )

Our machines are working in our customers' factory
