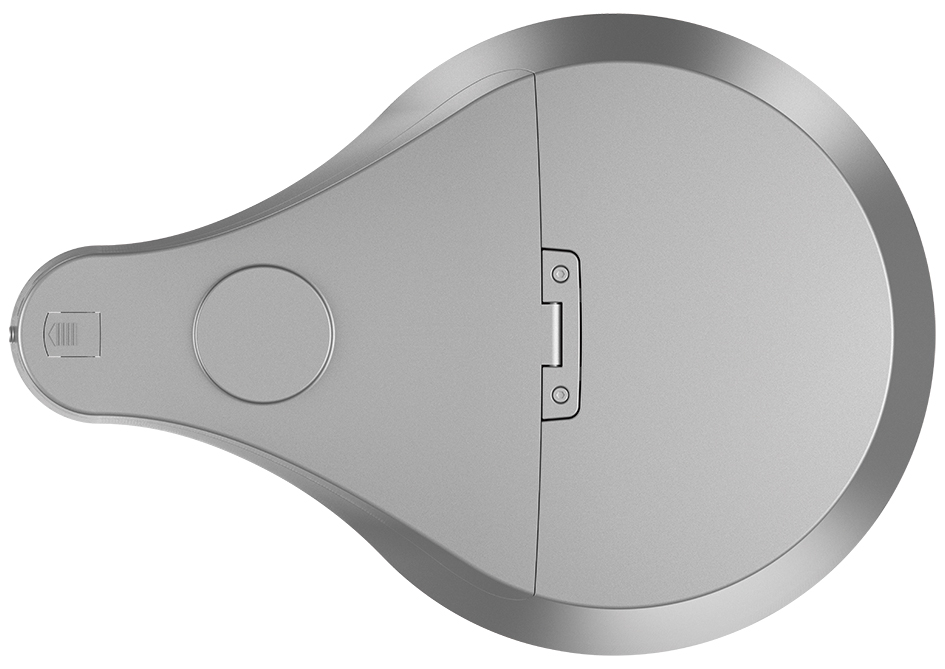

new designed factory price IP66 40-75W 6000-11250LM 2 size version Led Street Lighting

• Die-casting aluminium body, super white tempered glass.

• Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.

• High quality LED chips, Driver with 0-10V/DALI/programmed be options, and with surge protection up to 20KV.

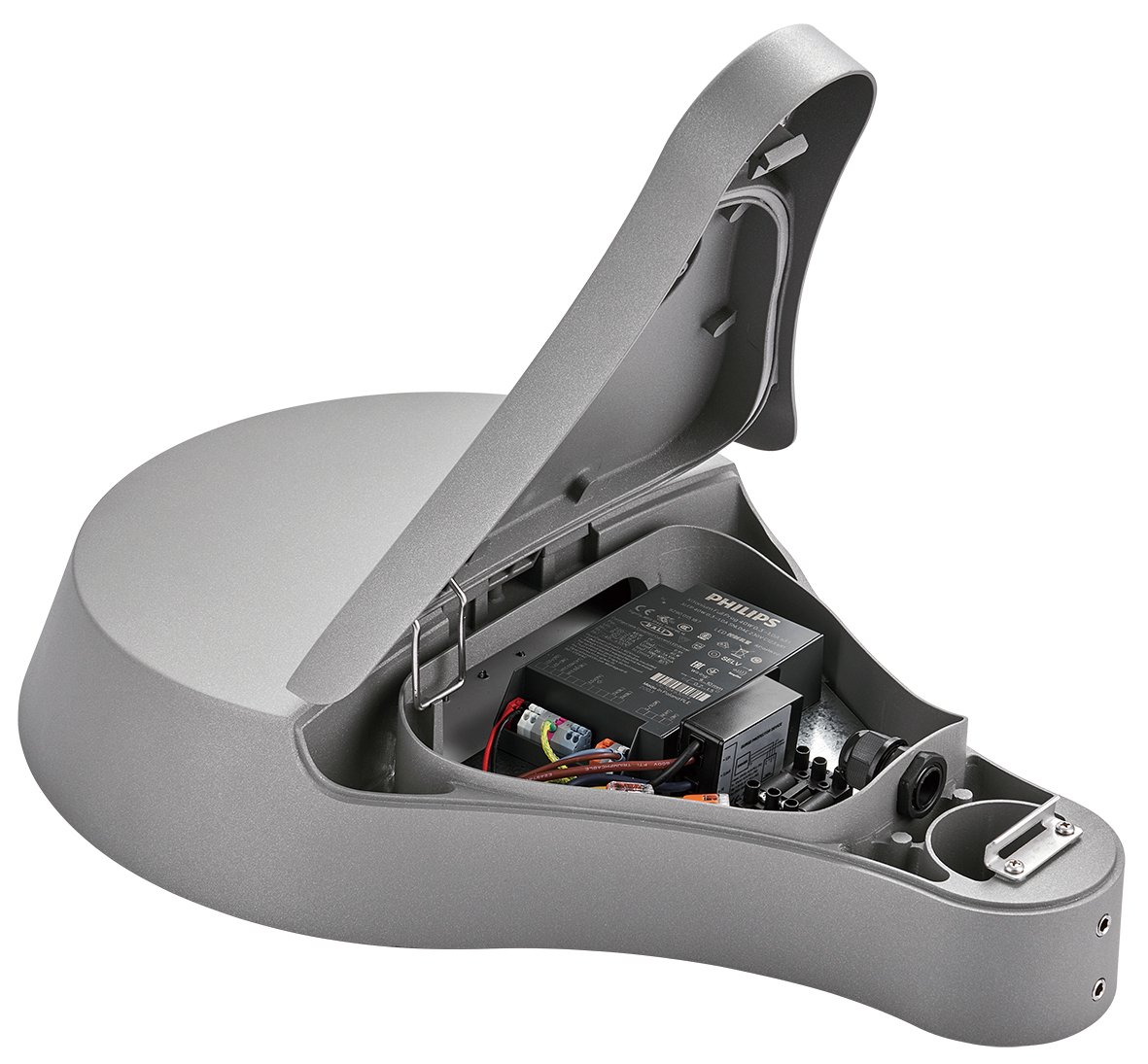

• Tool-free replaceable with push-botton for opened device.

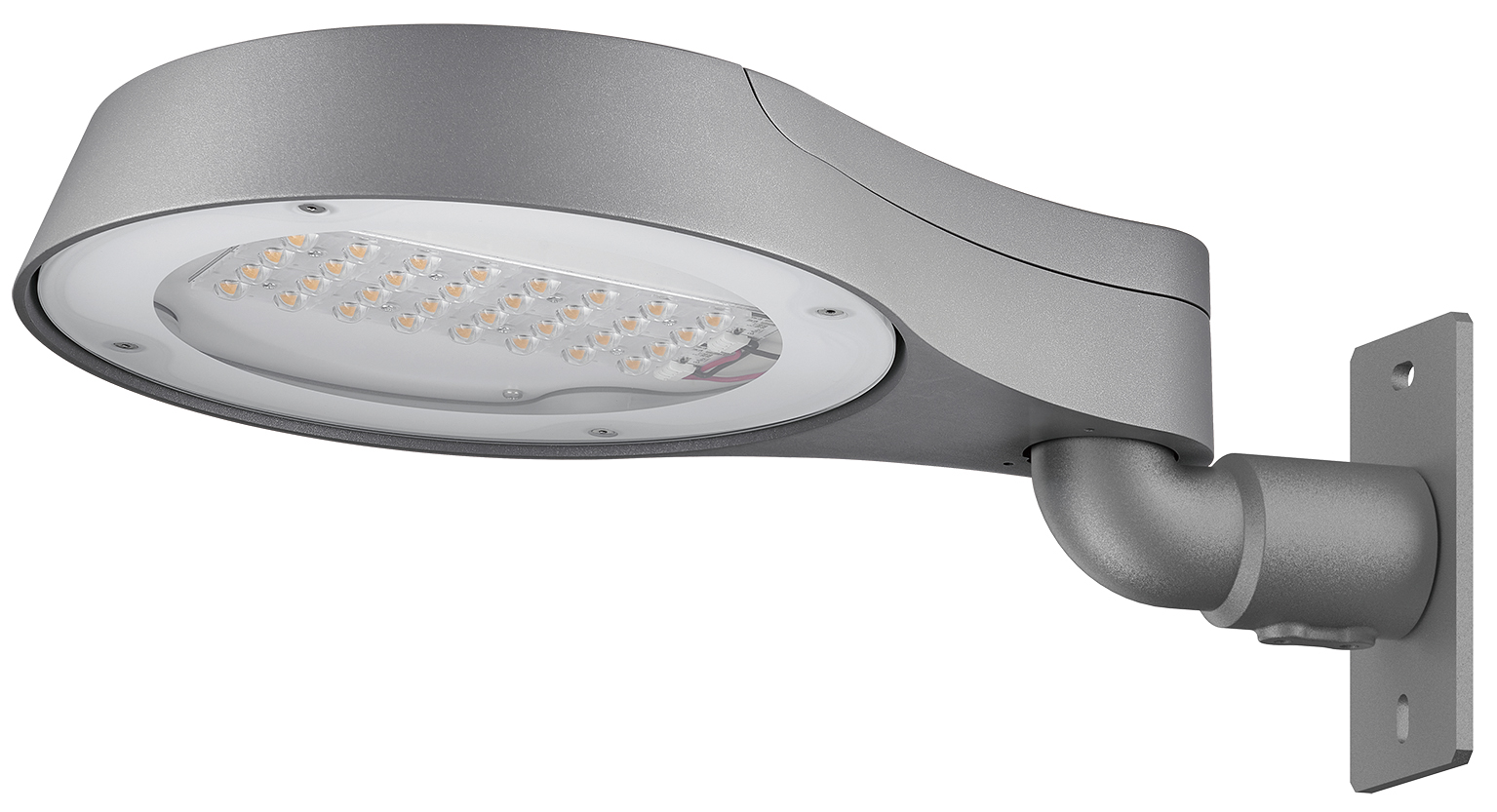

• There are three installation modes: vertical installation, horizontal installation and wall installation, installation tubediameter Ø48/Ø60mm.

• Surface anti-ultravilet pure polyester powder painting,Corrosion resistance can be more than 1000 hours.

• No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008

• Street lighting control system for use with smart LEDS.It can be compatible with remote management system.

• All external screw are in 304 stainless steel.

Product power:                40-75w

Light flow lumens:           6000-11250LM

Number of size:                2 size version

Colour temperature:        3000k/4000k

IP Grade:                            IP66

IK Grade:                            IK09

Fixing tube diameter:       Ø60mm/Ø48mm

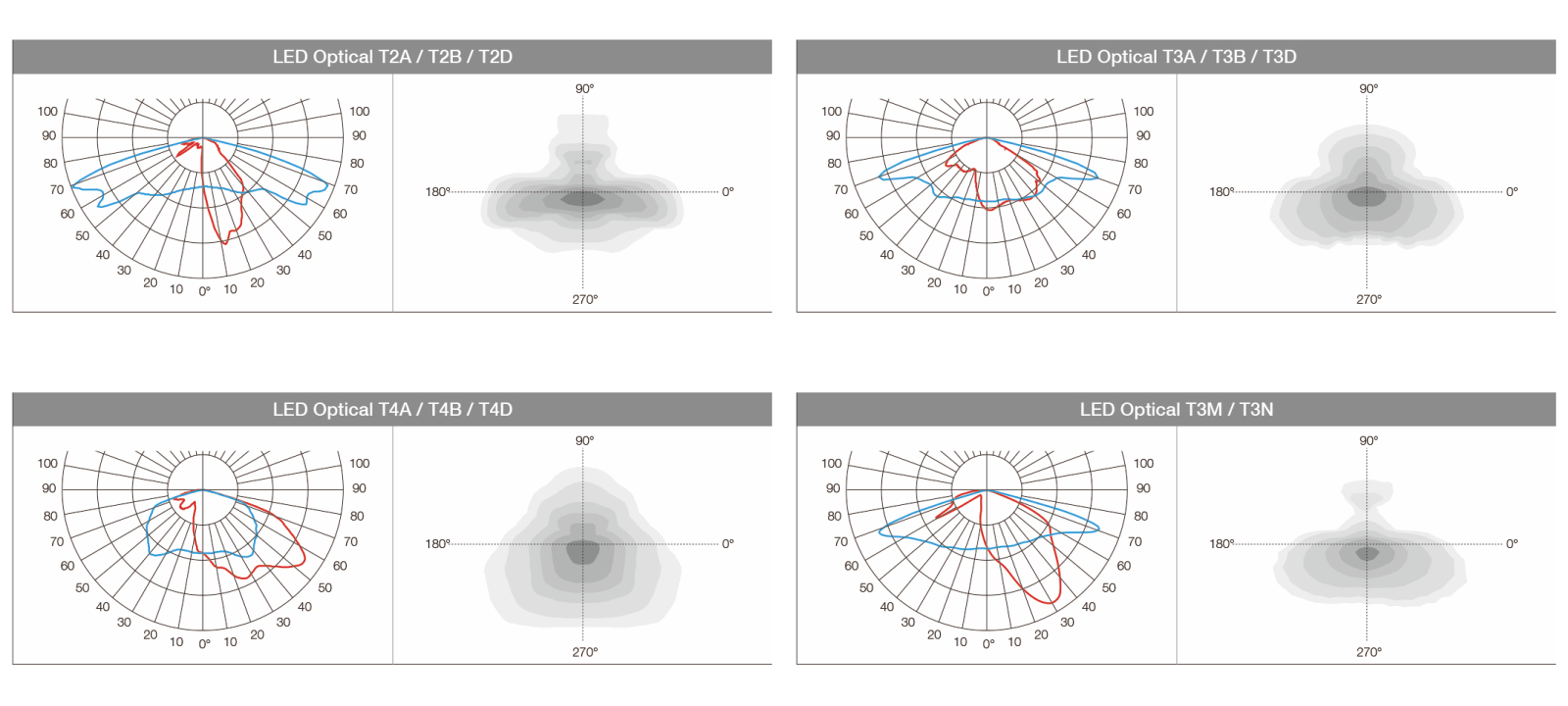

Optical application

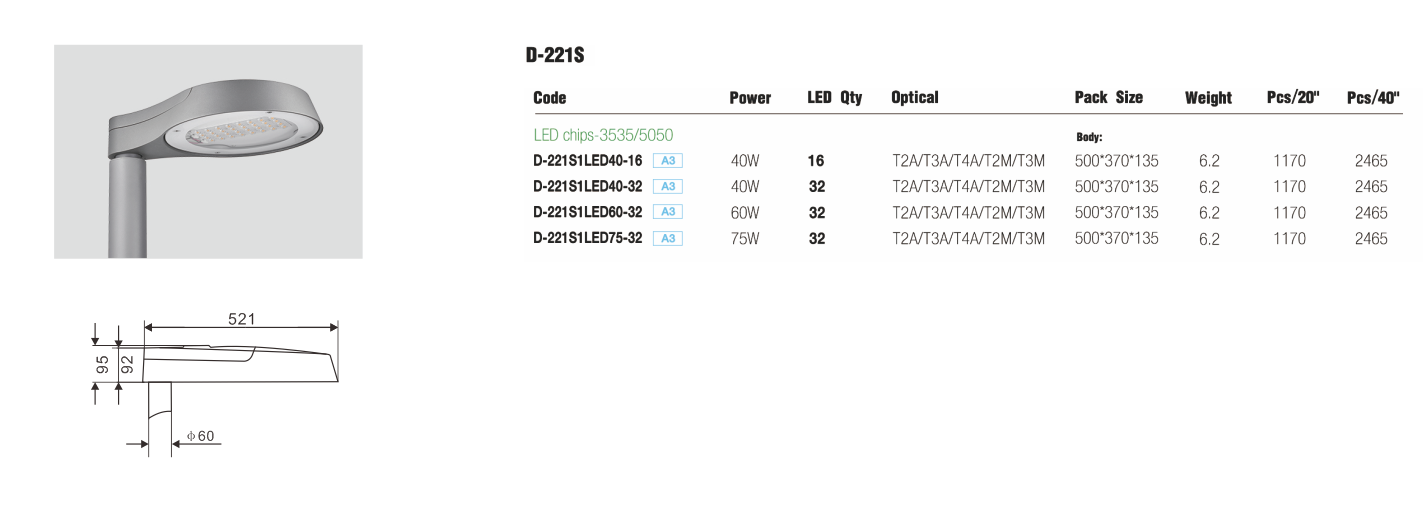

Technology data
