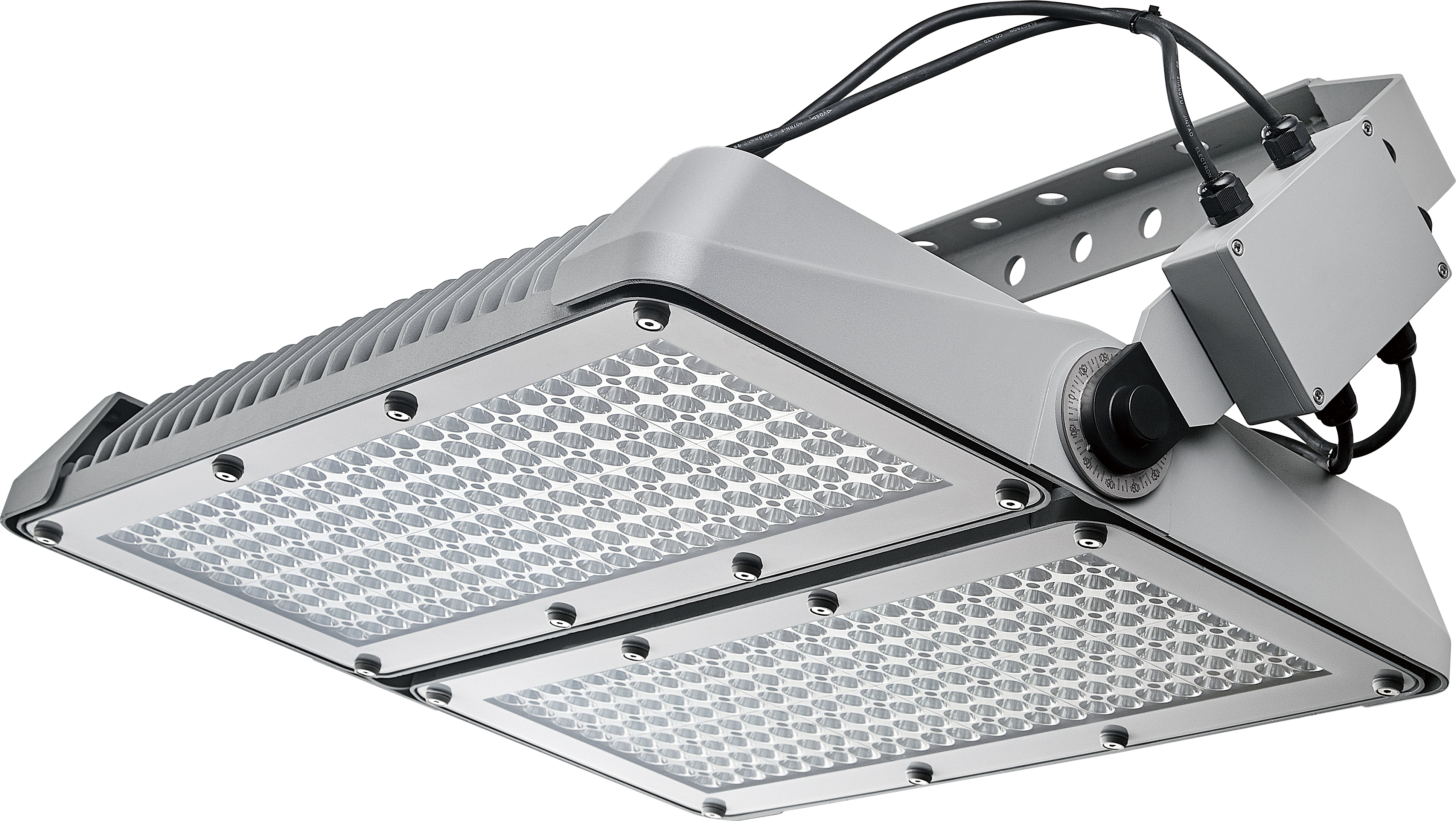

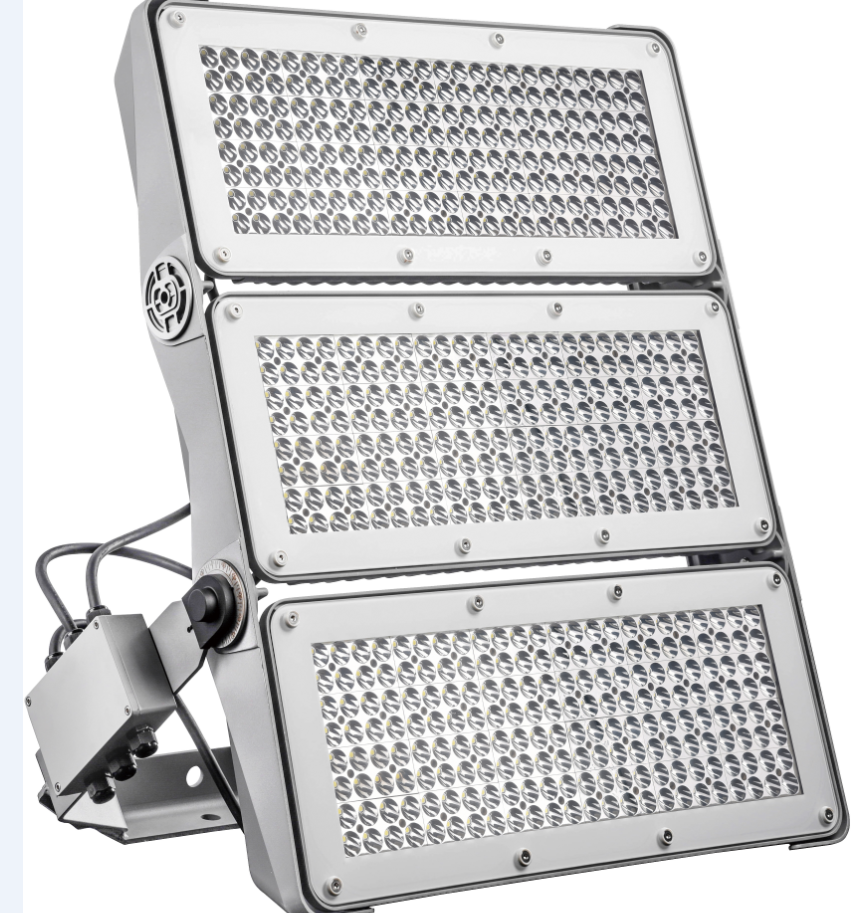

Die-casting aluminium body, super white tempered glass.Special shape design,electrical housing and led module separated design.
Optical with reflector design, it have high visual comfort and good anti glare effect ,multiple optical distribution options.
The eleictrical box adopts unique design , safe and fast openning , and the overall protection is IP66.
High quality LED chips , with ON-OFF/0-10V/DALI/DMX programmed options.
Surface anti-ultravilet pure polyester powder painting,Corrosion resistance can be more than 1000 hours.
No photo-biological risk, in accordance with EN 62471:2008.
All external screw are in 304 stainless steel.

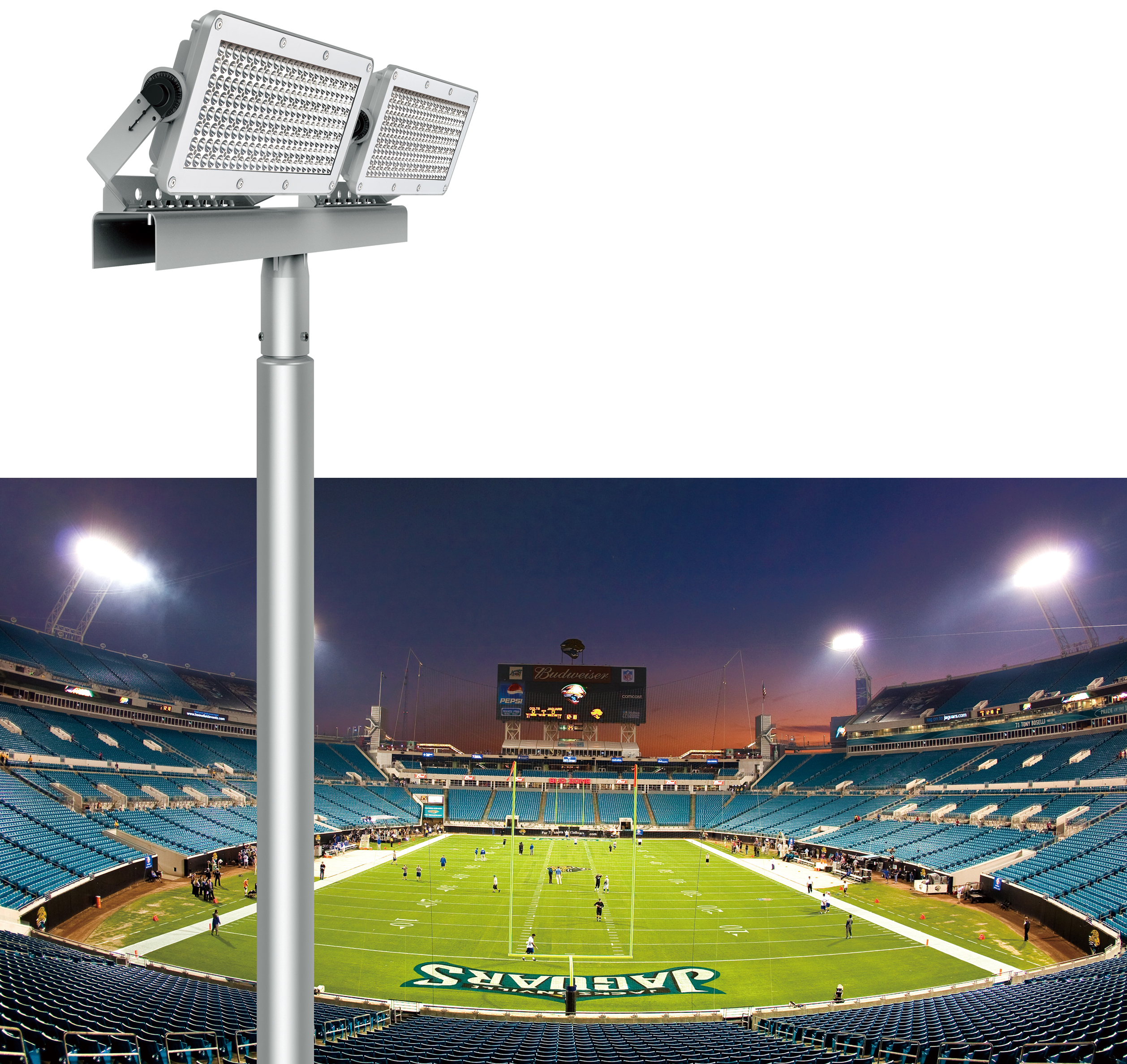

Application:A functional luminaire-used for Stadium lighting ,large area lighting , building and bridges facade lighting and others place.
Power: 400W-1800W
Light flow lumens: 58000-260000LM
Colour temperature: 4000K/5000K/5700K
CRI: >70Ra/80Ra/90Ra
Control Options: ON-OFF/0-10V/DALI/DMX/RGBW
IP Grade: IP66
IK Grade: IK08

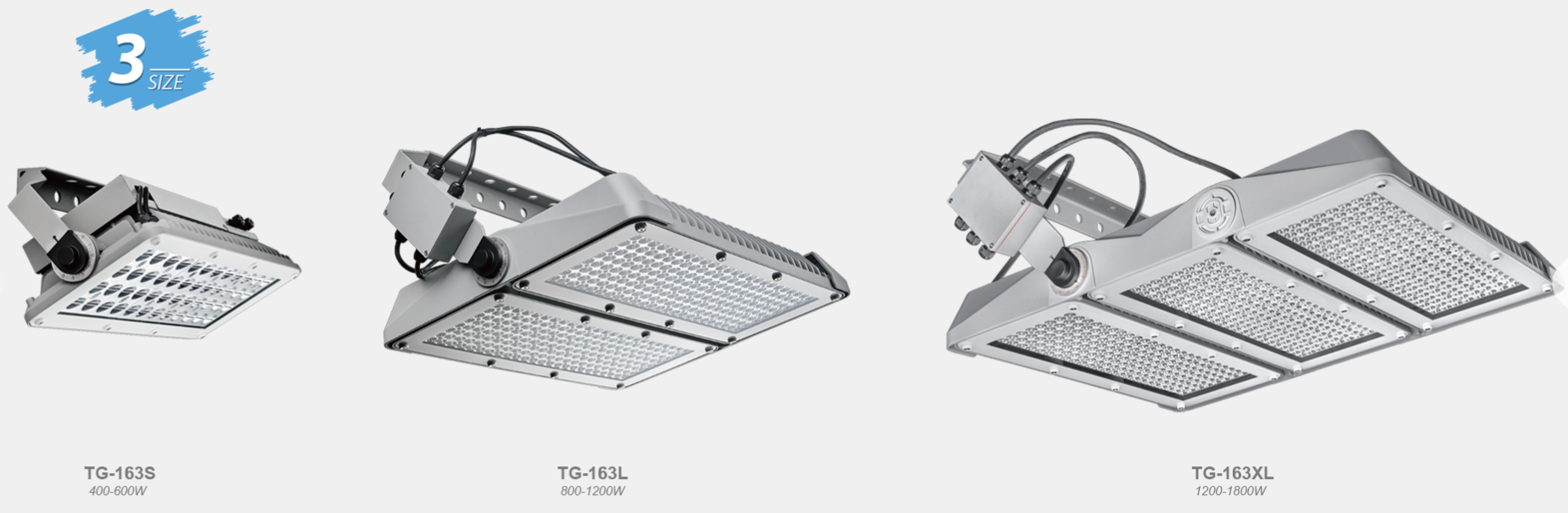

Numble of size: 3 size versions
Anti virbration grade: Passed 100k times virbation test of 5G/15HZ/3 aixs
Wind pressure test: >65M/S
