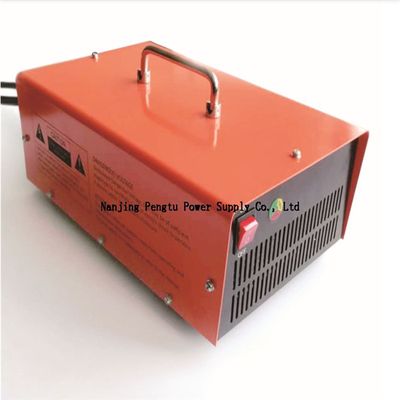

3000W 48V Portable battery charger

Product introduction and application areas
3000W 48V Portable battery charger are designed with semi-sealed potting structure;it is suitable for lead-acid liquid-filled batteries,lead-acid maintenance-free batteries,lithium batteries,etc.;it can be used for battery charging of electric light trucks,sightseeing cars,patrol cars,dining cars,forklifts,etc.
Technical parameters
.Ac input voltage range:180-260VAC;45-65HZ
.Power factor:≥0.98
.Max Efficiency:93%(Full Load)
.Noise:≤65dB
.Protection grade:IP20
.Working temperature:-30u2103~+55u2103
.Storage temperature:-40u2103~+95u2103
Product specifications
.Dimensions:368*220*145.5mm
.Net weight:6.0kg
Optional advanced configuration
.Can be with CAN bus;
.Optional low pressure auxiliary 12v;
.Can be connected with three-color indicator light;
.Charging lock function(The vehicle power system can be locked through the relay during charging process);
.Can add CC,CP to meet the charging needs of various occasions;
Multiple protection
.Output over current protection.Input under voltage protection
.Output over voltage protection.Over temperature protection
.Output short circuit protection.Fully charge automatic shutdown
.Output no-load protection.CAN failure protection
.Output reverse connection protection
Mechanical Size&Model selection
Item Battery Rated Voltage Max Output Voltage Max output current
PA3K0N48FB50 48V 66V 50A
Remark:Only typical models are listed.For other models,please determine the power,input voltage and output voltage and send an email to njptpowersales 163.com.
