Mobile Data Terminal

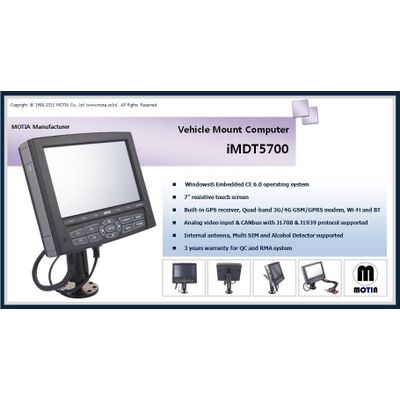

iMDT5700 is a new model of MOTIA mobile data terminal (on-board computer) lineup having 7 Inch LCD, Samsung S3C2450 processor and more rugged design for Fleet Management Service provider. And, this new product has more stable power management features through dual super capacitors/surge protection circuit in preparation for sudden power loss, drop or surge in Truck or heavy equipments.

Physical Characteristics

- size: 187 x 155 x 44mm

- Weight: 1.3 KG

- Ventilation hole (upper/bottom)

Software

Processor & Operating System

- Microprocessor: Samsung S3C2450, 533MHz

- Operation System Software: Windows CE 5.0 Core version provided by Microsoft

- Development Environment: Visual Studio 2005, NET compact Framework 3.5

- Software Development kit: Setup Program(Active Sync, SDK), Example test program/source(serial, digital IO, LED/button status etc), Basic materials for developers



Hardware



Memory

- Flash memory: Samsung NAND Flash 128Mbyte

- RAM: DDR 206Mhz, 128Mbyte



Display

- 7 Inch color VGA 800 x 480 transmissive TFT LCD: (wide type, 165 x 104.5 x 3.3) with integrated touch panel (provided by LG Phillips LCD)

- LED backlight, backlight brightness control adjustment available

- LCD specification: Operating Temperature -20 to 70u00b0C, 350cd/m2



Environment Conditions

- Standard Operation Temperature: -20 to 70u00b0C

- Relative Humidity: 5 to 90%

- Shock and Vibration Protection: withstands standard material handling vehicle environments.

We have developed and upgraded our products line up tailored to the needs of our clients who have provided excellent Fleet Management Services over the world. Now we have provided basically 3 years warranty for all of our products based on long term accumulated QC and RMA system. (The warranty period can be also extended more by a separate agreement.)
