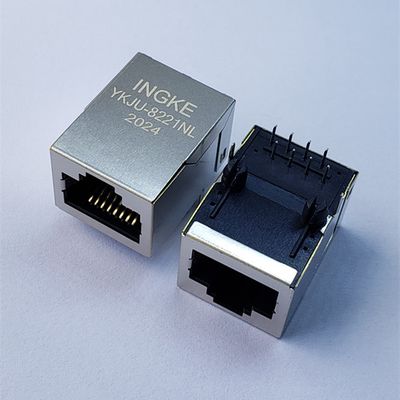

INGKE YKJU-8221NL Direct Substitute 74990100011A

INGKE YKJU-8221NL Direct Substitute 74990100011A 1 Port 100 Base-T Through Hole rj45 pcb connector

Part Number:74990100011A

Made in China:YKJU-8221NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category:Modular Connectors / Ethernet Connectors

Packaging:Tray

Connector Type:RJ45

Number of Ports:1

Number of Rows:1

Applications:10/100 Base-T, AutoMDIX

Mounting Type:Through Hole

Orientation:90° Angle (Right)

Termination:Solder

LED Color:Does Not Contain LED

Number of Cores per Jack:4

Shielding:Shielded

Features:Board Guide

Tab Direction:Up

Contact Material:Phosphor Bronze

Contact Finish:Gold

Operating Temperature:-40u2103~85u2103

Contact Finish Thickness:30µin (0.76µm)

Flammability Rating:UL 94 V-0

Shield Material:Copper Ally

Housing Material:Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd
