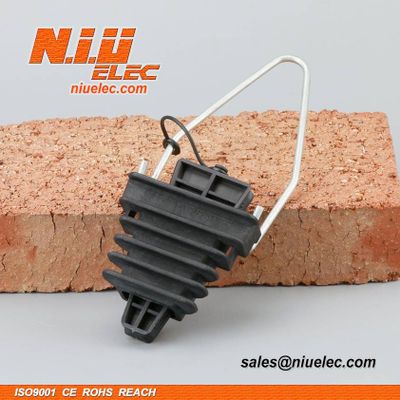

PA25 ANCHORING WEDGE CLAMP

They are in accordance with NFC 33-041, the body materials are UV-resistant. They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Anchoring clamp is suitable for insulated neutral 16 mm2-25 mm2. The minimum breaking load can up to 2kN. The wedge grip clamps are designed to anchor insulated service lines with 2conductors. Tool free installation with wedges sliding inside the body, easy to open bail permits fixing to brackets and pigtails. There is flexible stainless steel wire with the clamp.

1).It made of high strength PA66, nylon plus fiber glass, stainless steel.



2).Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts.



3).Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp.

Cross Section:2*(16-25)mm2

Material:Nylon, Steel

Conductor:4-8mm

Breaking Load:2 KN

It is used to fix the end of inside line, also suitable for insulated low-voltage ABC cable. It is also suitable for multiple conductors.
