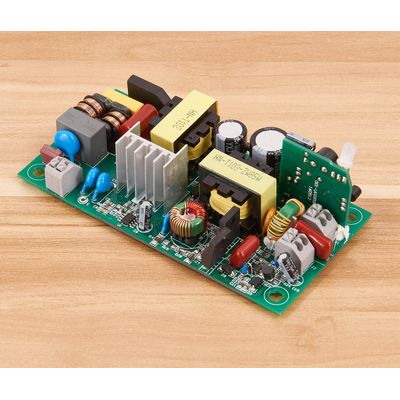

Electronic Ballasts for UV Tube Lamps Lights, UL listed, 65-85W, with Instant Start Circuit

Key Specifications/Special Features:

Product details

• Name: electronic ballasts for UV tube lamps lights
• Model number: 085B880N11-LUX3
• Safety certification: UL
• RoHS & WEEE directive: yes
• Input voltage: AC110-130V, 50/60Hz
• Output voltage: DC 90-100V
• Output current: DC 880mA±15%
• Output power: 65-85W
• Power factor: >= 0.9
• Efficiency: 84%
• PCB size: 125x63x45mm
• Waterproof level: IP66 (customized)
• Cabinet material: plastic or aluminum
• 2 - 5 years warranty (different cost)
• Used in applications: ultraviolet water sterilizers to start the UV lights

Parameters of electronic ballasts for ultraviolet water sterilizers can be engineered and manufactured to match the ultraviolet tube's parameters
Let us know the ultraviolet tube's parameters or your requirement details on the ballasts as below list for quotation to "sale01 at letchina dot net" .

1. Input voltage (AC)
2. Output voltage (DC)
3. Output current (DC)
4. Power factor
5. Additional function (such as audio alarm, Bluetooth control)
6. Waterproof level (IP65, IP66, IP67)
7. Safety certification (CE, CCC, UL, GS)
8. Ultraviolet tube brand and model# or the parameters
9. Using environment
10. Warranty period (2-5 years)
