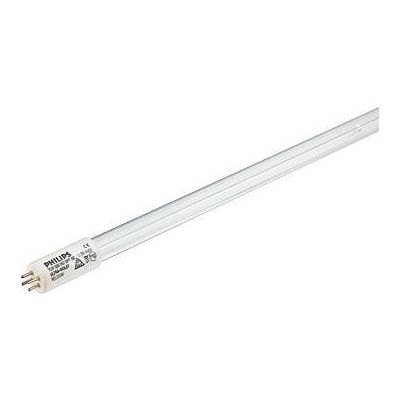

Philips TUV Amalgam lamp XPT systems water treatment

TUV Amalgam XPT-Maximum efficiency, independent of temperature

Philips TUV Amalgam XPT system consists of an electronic driver that operates one TUV Amalgam XPT lamp, mounted in a sleeve. The electrical specifications are tailored to the lamp, ensuring an optimized performance of the Philips TUV Amalgam XPT system. Thanks to extensive testing before a lamp system is released, we can ensure maximum reliability and long lifetime.

Benefits

- Security of effective disinfection over the useful lifetime of the lamp

- Extreme reliability of driver; with annual failure rate of less than 1%

- Approximately 10% energy savings, because lamps can be dimmed to reach the same UV output compared to similar lamps on the market

- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

- Best environmental choice because of long reliable life, less waste and industry leading low amount of mercury

- High efficiency during dimming thanks to unique amalgam temperature control of the 800W lamps

Features

- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection

- Special amalgam used for highest efficiency over wide temperature range

- Protective inside coating ensures constant UV output over the complete lifetime of the lamp

- Philips electronic driver available for a perfect interface

- Minimized amount of mercury

- Universal burning position possible for the T6 range, depending on lamp type and sleeve dimensions

- Tailor-made solutions possible

- Lamp can be made from special quartz (open/synthetic) to maximize 185 nm Ozone generation

ModelCapPower(W)Voltage(V)Current(A)Lifetime(H)UVC at 0h(W)UVC at 100h(W)Lumen Attenuation %

TUV 130W XPT SE4-pin140672.112000464415

TUV 180W XPT SE4-pin180902.112000636015

TUV 200W XPT SE4-pin220942.112000666315

TUV 325W XPT HO SE4-pin30516021200011410815

TUV 30W XPT SE4-pin375783.612000969115

TUV 800W XPT SE4-pin81510381200027325415

Application

- Deactivation of bacteria, viruses and other micro-organisms

- Municipal drinking water treatment equipment

- Process water treatment equipment

- Swimming pool units

- Equipment for the production of ultra-pure water, for example for the semiconductor, pharmaceuticals and cosmetics industry (ozone version)
