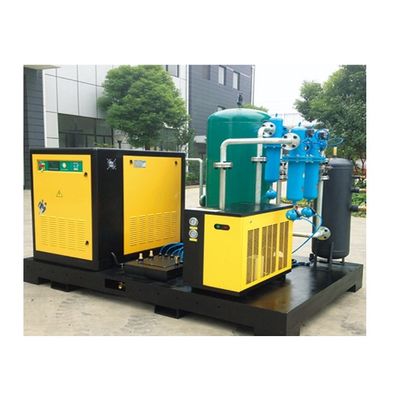

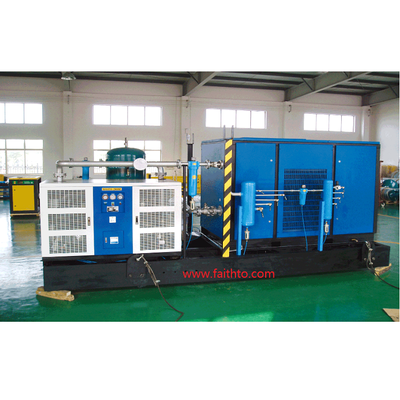

Screw air compressor and air treatment system

u2460    Screw air compressor

u2461    Air storage tank

u2462    Pre-filter (P)

u2463    Dryer

u2464    Back filter (A)

u2465    Fine filter (F)

Configuration description

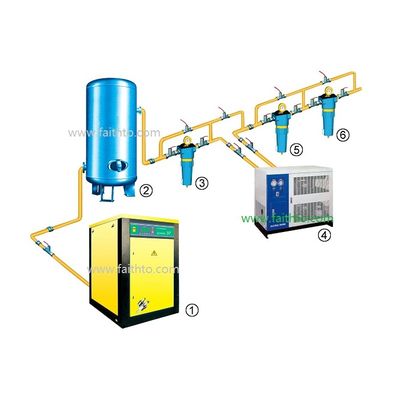

After the compressed air output from the air compressor to the air storage tank, the compressed air first passes through the (P-Level) pre-filter and then enters the dryer to remove most of the moisture in the compressed air, and then pass through the (A-level) back filter, the quality of the compressed air can reach: The particle size of dust≤1um and the oil content≤0.1ppm.

If the (F-level) fine filter is equipped, the quality of compressed air can be better: dust particle size ≤ 0.01um, oil content ≤ 0.01ppm.

The following configuration is equipped with activated carbon filter(7) , which can remove the odor in the compressed air, so as to be used in the working conditions with special requirements for odor.
