Product Description

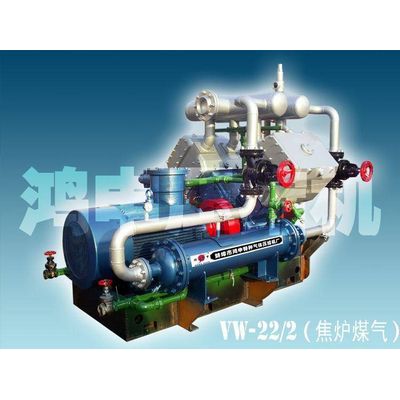

Product name:Chemical Special Industrial Gas Compressor
Model:VW-22/3
Medium:Coke Oven Gas
Flow/m3/min:22
Suction pressure/Mpa:Atmosphere pressure
Discharge pressure/Mpa:0.3
Overall dimensions/mm:2200u00d71550u00d71550
Weight/KG:About 2800
Motor power/KW:90KW
Product Feature
It has the characters of simple structure, smooth running, low noise, easy operation, safety and reliability. It is mainly used as surplus gas recycling and boost operations in chemical industry and its working mediums are the special ones such as ethylene, propylene, vinyl chloride, chloromethane and dimethyl ether etc. The chemical engineering compressor that my factory produces has a complete product, many specifications and quick variant, having the stationary type, portable type and skid-mounted type, displacement from 0.2m3/min to 80m3/min, discharge pressure from 0.2 Mpa to 25 Mpa, and can compress various chemical special gas, such as coal gas, nitrogen, carbon dioxide, ethylene, Freon, difluoroethane, methane, ethane, propane, natural gas and LPG etc.
The product's structure has: V type, vertical type, symmetry type and range type. Above products are all the compressors with oil free lubrication compressed medium.
Product Specification / Models
VW-22/3
