PP/HDPE Woven Bag Making Machine | PP Woven Sack Machine
Home
PP/HDPE Woven Bag Making Machine | PP Woven Sack Machine

PP/HDPE Woven Bag Making Machine | PP Woven Sack Machine

$150000.00~$258000.00
Min.Order 1   Others
Min. Order: 1
Payments: L/C, T/T
Delivery: -
Origin: -
Packing: -
Inspection: -
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

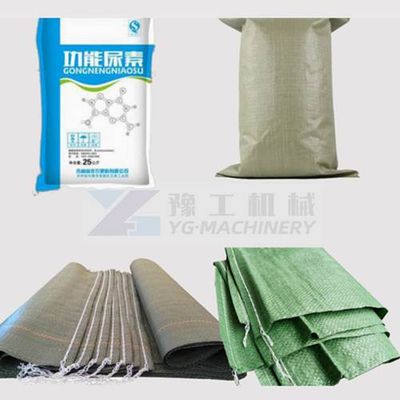

    High Speed & High Capacity PP/HDPE Woven Bag Making Machine is mainly used for middle sealing of woven bags, or middle sealing bags of cement paper bags, chemical raw materials, grains, fertilizers, etc.

    Now contact us to get a Woven Bag Making Machine factory price.

    Automatic Woven Bag Making Machine Parameters

    Bag width350-600mm
    Bag length450-910mm
    Bag bottom width80-180mm
    Valve port length80-200mm
    Maximum production speed100 pcs/min
    Maximum unwinding diameter1200mm
    Power supply380V/3P/50HZ/A.C.
    Installed power85kW
    Dimensions (LxWxH)13000*8500*2500mm


    The Woven bag making machine consists of 8 types of machines. The unit is based on PP (PE) plastic woven laminating cloth or three-in-one paper-plastic woven cloth and paper bag paper. , conveying, stacking, and counting are continuously completed in one process; it can produce folded, non-folded, flat or self-sealing valve-mouth middle-sealed composite bags, paper-plastic composite bags and plastic-woven cylindrical bags, which are suitable for packaging cement, Ideal equipment for granular and powdery materials such as chemical raw materials, fertilizers, and grains.



    PP non woven sack sewing and cutting machine parameters

    This machine is suitable for nonwoven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 35-45 pcs/min, it equals 5 workers operating 5 handle sealing machines. It can fully automatically make non-woven bag products with different bag types and sizes, such as handle attached bags, T-shirt bags (vest bags), box bags, flat bags, drawstring bags, and so on. It has widely used in clothing, footwear, wine, gifts packaging, etc. The machine can instead of the traditional hand-sewing and reduce labor and manufacturing costs. It's very popular worldwide.

    Maximum roll diameter1200mm
    Maximum cutting length1300mm
    Maximum cutting width800mm
    Cutting accuracy±2mm
    Folding width20-30mm
    Production capacity35-45 pieces/min
    Total power5kw
    Weight1200kg
    Installation size6.5*5.5m





    Woven bag making machine Manufacturer & Supplier

    Henan Yugong Machinery Co., Ltd is a professional machinery manufacturer and a trader who has committed to research and development of production line for over 20 years. The machines are mainly used for manufacturing items, including diaper making machines, wet tissue machines, mask making machine, gloves making machines, etc. Now, our equipment is not only be sold to China, but also exported to many countries around the world, such as Europe, Africa, America, Australia, Korea, Kuwait, Nigeria, France, Singapore, and so on.
