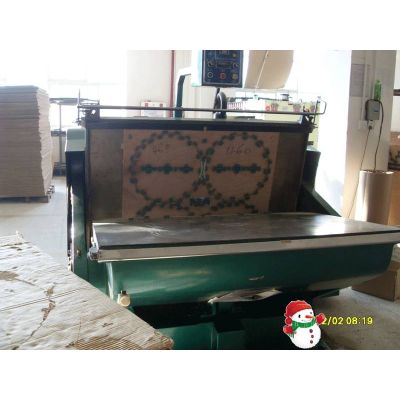

Corrugated box creasing die cutting machine

a.HT250 Material fuselage pressure rack.b.40cr material big axes.c.45# gear wheel steel rods.d.automation oiling system.

The fuselage the pressure rack adopt HT250 material quality.Big axes adopt 40cr material quality.connecting rods big 45#gear wheel steel.imported eletrical apparatus equipment.automation oiling system device.

SizeInner chase size(mm)Max.Rule AreaWeight (kg)Dimensions(mm)(L* W* H)Speed(strokes/min)Max.Rule length Motor PowerPYQ401C750*5201900KG1360*1400*1300mm25u00b12<14M2.2KWPYQ203C930*6603000KG1800*1800*1850mm25u00b13<25M4KWML11001100*8004500KG1950*2150*1850mm20u00b12<30M4KWML12001200*8304800KG2050*2150*1900mm20u00b12<32M4KWML13001300*9205600KG2350*2100*1950mm16u00b12<36M5.5KWML14001400*10006500KG2450*2100*2000mm15u00b12<38M5.5KWML15001500*10506800KG2550*2100*2100mm14u00b12<40M7.5KWML16001600*125011500KG2780*2300*2400mm13u00b12<43M11KWML18001800*128013500KG2980*2300*2500mm13u00b12<52M11KWML20002000*140016500KG3180*2400*2580mm

Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on PAPER, LINOLEUM, CARD-BOARD, CORRUGATED BOARD, FIREBOARD, CORK, LEATHER, PLASTIC AND PVC MATERIALS etc.

Sliding bearings are made of high quality alloy copper, thus to get effect of anti-frietion and shake reducing. Flywheel is with big moment of force and large pressure.High strength due to one piece casting by using top-ranking material for machine body.Single plate electromagnetic clutch is sensitive and reliable.With functions of single, continuous and opening dwell operation, dwell range is adjustable.Operating position is reasonably arranged, moving-bed can be opened to its optimum.Safety system is reliable. Can equip inner and outer movable frame and centrailzed lubrication device.
