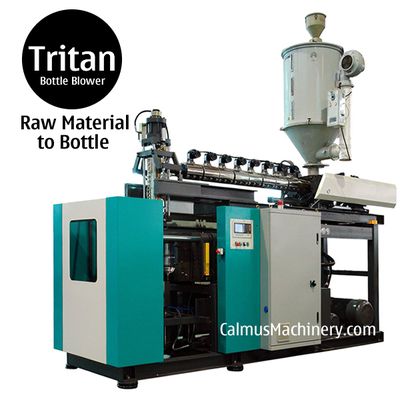

5 Gallon Tritan Bottle Blowing | 20 Litre BPA-Free Bottle Making Machine

Type: Raw Material to Bottle (no need of Preforms)
Feed material: Tritan Copolyester raw material (in granules)
Bottle volume: 5 or 20 litres
Production capacity: 60 pcs/hour (5 gallons)

1) Plasticizing System
Screw Diameter (mm): 85
Ratio of Screw Length/Diameter (L/D): 28
Plasticizing Rate (kg/hr): 80
Injection Stroke (mm): 360
Screw Speed Range (rph): 10-56

2) Clamping System
Clamping Force (kN): 190
Clamping Stroke (mm): 350
Mould Thickness Range (mm): 370-410
Max Opening between Platens (mm): 720

3) Power Consumption
General Power (kW): 84
Hydraulic Motor (kW): 37
Electrical Heating Power (kW): 44
Average Electricals Power Rating (kW): 58

4) Air Source Connection
Required air source pressure: min. 6-10 bar; Air consumption: 0.4M3/min..

5) Water Source Connection
Required water pressure: min. 2-3 bar; Water consumption: 6M3/min.

6) Control System
100-point wall thickness control, 6" colour display.

7) Machine Dimensions
4,985(L) x 1,465(W) x 2,765(H) mm

8) Machine Weight
6 tons (not including hydraulic oil and mould)

9) Production Capacity
>= 60 bottles/hour (based on qualification rate of 98%)

---

What do you need to prepare for making the BPA free Bottles?
Tritan Copolyester resin granules in bags. Simple and the Tritan resin is easy to buy locally.

Process:
1. Load Tritan resin in the Hopper of the machine.
2. Melt Tritan resin coming into the mould.
3. Melt Tritan resin is shaped into a bottle in the mould.
4. The mould is open and take out the bottle.

Very simple. Easy to buy material and easy to operatre.

What kind of bottles does the machine can make?
2-5 gallon bottles with or without handle.
