Jinhengli Hopper Dryer-HAD series

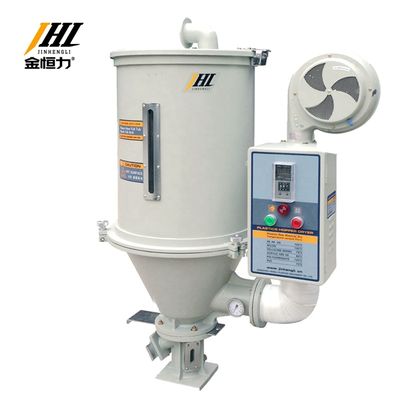

HAD series Hot air dryer

HAD series of hot-air dryers is the effective and efficient machine to dry various types of raw plastic materials using hot air at high temperatures. It can dry raw materials which get moist or wet during packaging, transportation or recycling. Fast and space-saving, the design of the machine has made itself easy to be installed on the plastic molding machinery to function immediately. All the models in this series can work with a 24-hour Panasonic timer with pre-configured switch.

Features:

PID temperature control, accurate and reliable temperature control.

Curved design of hot air tube to avoid burning caused by the accumulation of scraps at the bottom of the tube.

Thermal diffusion device used to evenly disperse hot air, keeping the drying temperature of the plastic even, improving drying efficiency.

Barrel and hopper are separate for easy material cleaning and fast material change.

Barrel can be turned over on the hopper for fast material change and easy maintenance.

Over temperature protection device installed. It will shut down once there is over heat.

Windows on the body and base of the barrel for observation of the material inside

Work with 24-hour Panasonic timer with pre-configured switch.

Double insulation barrel is optional for all machine types.

we reserve the right to change specifications with prior notice.

Installation Digram

The Below left picture is Hopper dryer installed with  Carbon brush type  PL-300 Vacuum autoloader ; right picture is Hopper dryer installed with induction type PL-900 Vacuum autoloder .
