steel bar connector

Professional exporter of steel bar connector

Product Description

Size:Ø16-Ø40 deformed steel bar

Working operation:45mm

Maximum pressure:63MPa

Clamps tension: 65T

Oil pipe connector: M24*1.5

Motor power:3Kw/380V

Oil Pump Weight: 80Kg

Press Clamps Weight: 35Kg

Gross weight:120Kg

Dimension: 820×600×800mm

Feature :

1. Cold-extruded connections of rebar connector is to insert the rebar into the extruding sleeve and use crushing clamp to squeeze the sleeve to produce plastic deformation and compact tightly with the surface of the concrete iron to form a joint. Comparing with the welding technology, the joint quality is stable and reliable. It has the advantages of no environmental impact, all-weather construction, joint seismic resistance, fatigue durability and low-temperature resistance. The rebar connector is used with high pressure pump station, high pressure oil pipe, crushing clamp, moulding-die and so on.

2.  It is compacted tightly, easy to use, light in weight, easy to move, simple to operate, adjustable in press clamp speed, and used flexibly in various complex environments.

Application:

  Cold-extruded connection of steel sleeve is a new technology for reinforced concrete structure construction. It is mainly used in hydropower construction, building engineering, high-rise frame, railway, flood control dam, airport construction, tunnel, earthquake-resistant buildings, marine embankment slope and other rebar connection applications.

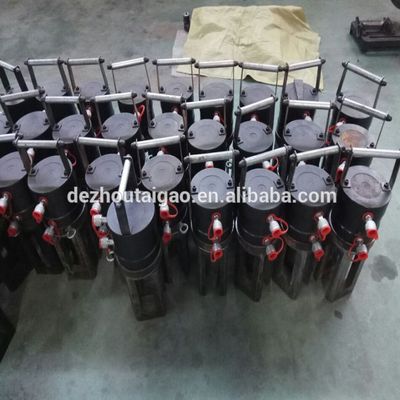

Product accessories:

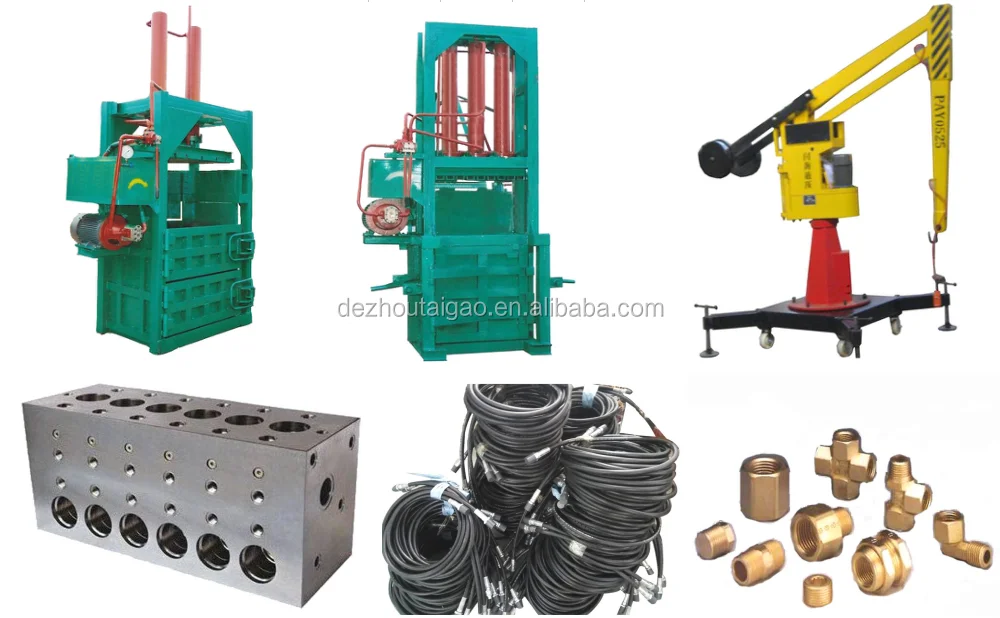

Other products show:
