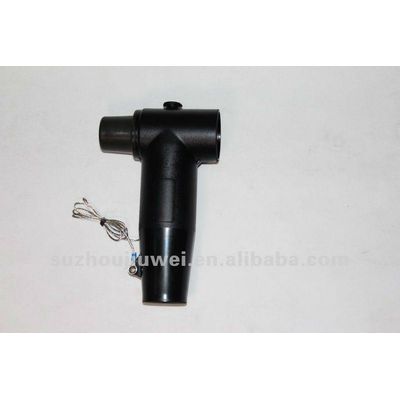

VSHJ-615/624 Tangible Separable Rear Connector/Cable Connector/Separate Connector

VSHJ-615/624 Tangible Separable Rear Connector is widely used as connector of outlet cable in Ring Main Uint,Cable Branch Box,Prefabricated Substation and others Electric power systems.Can connect VMQJ-615/624 and VSQJ-615/624 , and then constitute multiple loop systems.Rated current 630 A,suitable to 25~400mmu00b2of XLPE.

Features:



1,Being in conjunction with sleeve joints or plugs, provide full shielding and whole sealing separable connection



2,Stable operation in underwater and poor or very poor condition.



3,Built-in capacitance meter test live line measurement,must use with High Voltage Display



4,No requirements of minimum clearance distance.



5,It can be installed at random angle and would not be limited by the installation position.

Model Number ：VSHJ-615/624

Tangible Separable Rear Connector colour ：black

Separable Rear Connector Rated current： 630A

separable Rear Connector Rated voltage： 12/20(24)kv

Impulse withstand voltage ：125KV

AC withstand voltage： 54KV

Continued Rated current ：630A

Short-circuit current： 33KA

Magnitude of partial discharge ：≤2pc(20)kv

Dynamic Current：83.9KA/0.06s

power

Tech Data:



Rated voltage:12/20(24)kv



Impulse withstand voltage:125KV



AC withstand voltage:54KV



Continued Rated current:630A



Short-circuit current:33KA



Magnitude of partial discharge:≤2pc(20)kv



Dynamic Current:83.9KA/0.06s
