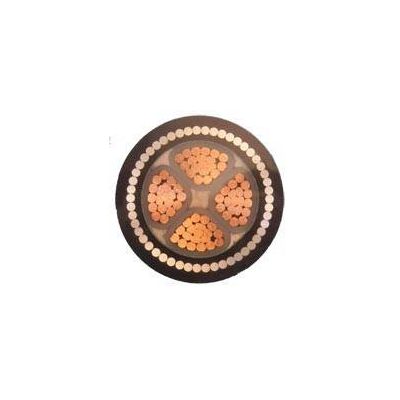

copper core XLPE insulated PVC sheath armoured cable

Product Description

XLPE Insulated PVC Sheathed Power Cables

Standards: IEC60502, GB/T12706-2002

Application: It is suitable to be installed indoors, in duct, tray or direct burial, with rated low voltage of U0/U

(0.6/1KV) and medium voltage of U0/U (6/6KV; 6/10 KV; 8.7/10 KV; 8.7/15 KV; 26/35 KV; 26/45KV) for transmitting

electricity.

XLPE insulated power cable has a number of advantages over PVC insulated cable. XLPE cable has high electric strength,

mechanical strength, high-ageing resisting, environmetal stress resisting, antichemical corrossion. It can be laid with

no drop restriction.


YJV

YJLV
YJV: Copper conductor XLPE insulated and PVC sheathed power cables.
YJLV: Aluminium conductor XLPE insulated and PVC sheathed power cables. 0.6/1KV 1 1.5~1200 4~1200
2 1.5~300 4~300
3 1.5~300 4~300
4 1.5~300 4~300
5 1.5~300 4~300
3+1 1.5~300 4~300
3+2 1.5~300 4~300
4+1 1.5~300 4~300
Media voltage power cable 6/6; 6/10; 8.7/10; 8.7/15; 26/35; 26/45 1 25~630 35~630
3 25~400 35~400
YJV22

YJLV22
YJV22: Copper conductor XLPE insulated and PVC sheathed steel tap armoured power cables.

YJLV22: Aluminium conductor XLPE insulated and PVC sheathed steel tap armoured power cables. 0.6/1KV 1 10~500 10~500
2 2.5~300 4~300
3 2.5~300 4~300
4 2.5~300 4~300
5 2.5~300 4~300
3+1 2.5~300 4~300
3+2 2.5~300 4~300
4+1 2.5~300 4~300
High voltage power cable 6/6; 6/10; 8.7/10; 8.7/15; 26/35; 26/45 1 25~630 35~630
3 25~300 35~300
YJV32

YJLV32
YJV32: Copper conductor XLPE insulated and PVC sheathed steel wire armoured power cables.

YJLV32: Aluminium conductor XLPE insulated and PVC sheathed steel wire armoured power cables. 0.6/1KV 1 50~500 50~500
2 35~300 50~185
3 25~300 35~300
4 25~300 35~300
5 25~240 35~240
3+1 25~300 35~300
3+2 25~300 35~300
4+1 25~240 35~240
Media voltage power cable 6/6; 6/10; 8.7/10; 8.7/15; 26/35; 26/45 1 50~630 50~630
3 25~300 35~300




Other Information
