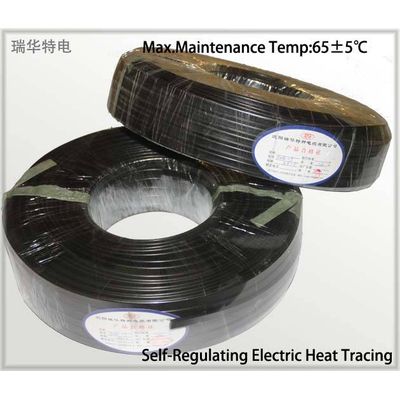

DWK self regulating heating cable introduction:

DWK series of self regulating heating cable are used for process temperature maintenance and prevention frost or keeping warming for tank.The maintenance temperature is 65u00b0C,designed for variety of insustrial applications and environments,including hazardous,non-hazardous.

Production Type:

DWK-J,DWK-P,DWK-F,DWK-PF

Composition of self regulating heating cable:

(1)tinned copper (7*0.42,7*0.52,19*0.32)

(2)conductive plastic

(3)modified polyolefin insulation material

(4)Al-Mg Alloy

(5)polyolefin or flame retardant material

Capability patameter:

Standard color:black,gray

Temperature range:the max.tempetature is 65u00b0C,the withstand temperature is 105u00b0C

Operating temperature:the min. is -60u00b0C

Heat stability: after 300 cyclings from 10u00b0C to 99u00b0C，the quantity of heat of cable maintains at above 90%

Working voltage:110V,220V,380V

Outer power(W/m,10u00b0C)10,15,20,25,30

Explosive mark:ExllT6

Features:

1.self regulating heating cable can auto regulate outer power,so it will not overheat or burnour,evenlapped upon itself.

2.self regulating heating cable is approved for using in non-hazardous,hazardous and corrosive environments to world wide srandards.

3.self regulating heating cable can be cut or lengthened it at any length(within the max length) .

4.self regulating heating cable has a quick start at low temperature.

5.easy to install and maintenance and less run and maintenance expense.

6.automation level is high,safe and reliable,widely use,eco-friendly,long servicelife.

Easy to install: Self-regulating heating cable can be cut any length up to maximum circuit length in the field. It is quick and simple to install. And require no special or tools. Termination, splicing and power connection components are all provided in convenient kits.
