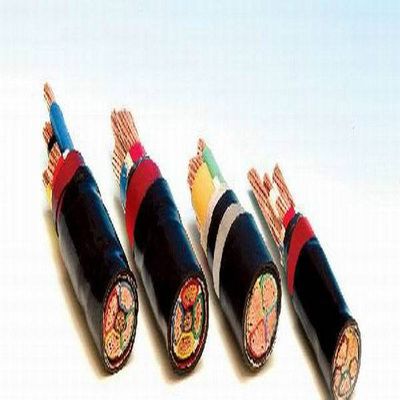

Factory hot spot! Power Cable Copper XLPE Insulation steel tape armoured power cable

Factory hot spot! Power Cable Copper XLPE Insulation steel tape armoured power cable



Rated Voltage 6kV and 30kV power cable (XLPE insulated),6kV-30kV

Cross-sectional area : single core,three-core 25-630mm2

Copper ,aluminum conductor, metal tape armoured,wire armoured.

Rated Voltage 30kV power cable (XLPE insulated), 21/35kV,26/35kV,

Cross-sectional area : single core,three-core 25-630mm2

Power cable Structure

The basic structure of power cables by the core (conductor), an insulating layer, a shielding layer and a protective layer of four parts.

1. The core is conductive part of power cable, which is used to transfer power, is the main part of the power cable.

2. Insulation is the line between the core and the earth and the different phase of wire core in the electrical insulated from each other, is an indispensable part in the structure of power cable.

3. Shield 10KV power cable shielding layer and more generally have a conductor shielding layer and an insulating shielding layer.

4. Protective layer The role of the protective layer is to protect the power cable from the outside world the invasion of the impurities and moisture, and prevent the external force directly damage the power cable.

Type

Core

Rated voltage(kV)

Copper

Aluminum

0.6/1

3.6/6

6/6

6/10

8.7/10

8.7/15

12/20

18/20

18/30

21/35

26/35

YJV

YJY

YJLV

YJLY

1

1.5~400

25~500

35~500

50~500

3

1.5~300

25~300

35~300

50~300

2

1.5~150

-

-

-

-

-

-

-

3+1

4~400

-

-

-

-

-

-

-

3+2,4+1

50~240

-

-

-

-

-

-

-

5

1.5~35

-

-

-

-

-

-

-

YJV22

YJV23

YJLV22

YJLV23

1

4~400

25~500

35~500

50~500

3

2.5~300

25~300

35~300

50~300

2

4~150

-

-

-

-

-

-

-

3+1

4~300

-

-

-

-

-

-

-

3+2,4+1

50~240

-

-

-

-

-

-

-

5

2.5~35

-

-

-

-

-

-

-

construction

Why choose us?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas
