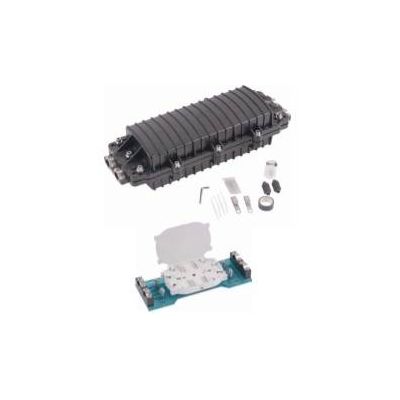

In-Line Fiber Optical Splice Closure, (FOSC)

FOSC is a device which has function of optical transmission link, providing various of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.

Features:

Convenient to increase to reduce trays/cassette for capacity requirement.

excellent performance under impact, pulling, tension etc.

3 fixing item/designs to prevent fiber cable from external effect

Spacious place for storing and maintenance.

Can be used from -40 to +65degree temperature range

Intergraded seal, Air tight and water proof, flame-retarded

SGS, ROHS test certificated.

Suitable for aerial, underground duct or direct burial applications.

Cable portMaterialDimension(mm)capacity Splice trays Cable size (mm)

2 in&2 outPC,PPR500*200*120

465*180*122

400*200*110

380*175*80

250*190*7512-48cores12 ,24cores

Splice tray8-22

3 in&3 outPC,PPR555*240*123

510*200*160

450*216*160

370*185*14512-288cores12 ,24 cores

Splice tray8-22

4 in &4 outPC,PPR555*240*12312-288cores12 ,24,48 cores

Splice tray8-22
