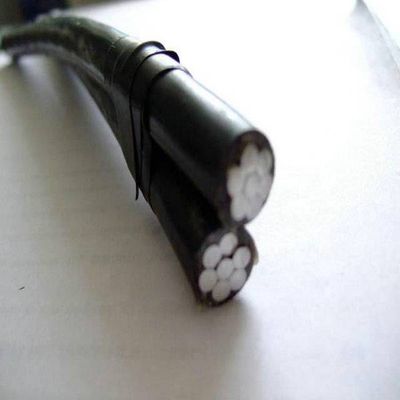

Hot spot! factory XLPE Insulated ABC Cable(Aerial Bundled Cable)

Hot spot! factory XLPE Insulated ABC Cable(Aerial Bundled Cable)

JKYJ, JKTRYJ GB14049-93

CE, CCC

Constructions

Conductor: Circular stranded Copper conductor

Insulation: XLPE

It is applicable to fix and lay down 10 KV overhead power line. To extend cables, it shall be taken into consideration to keep a certain distance between cable and tree. And it is permitted to have frequent contracts between cable and tree while the cable is in operation.

Standards

International: IEC 60502, IEC 60228

China: GB/T 14049-93

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 10KV

Max. Conductor Temp.: normal (90degree), short circuit no more than 5 s and the temperature should not exceed 250 degree

Min. Ambient Temp.: The installation the ambient temperature should not be low than -20 degree

2 x 16 mm2

3u00d725 mm2+54.6 mm2+16 mm2

2 x 25 mm2

3u00d735 mm2+54.6 mm2+16 mm2

2 x 35 mm2

3u00d750 mm2+54.6 mm2+16 mm2

2 x 50mm2

3u00d770 mm2+54.6 mm2+16 mm2

4 x 16 mm2

3u00d770 mm2+70 mm2+16 mm2

4 x 25 mm2

3u00d795 mm2+70 mm2+16 mm2

4 x 35 mm2

3u00d7120 mm2+70 mm2+16 mm2

2 x 16 mm2

3u00d725 mm2+54.6 mm2+16 mm2

2 x 25 mm2

3u00d735 mm2+54.6 mm2+16 mm2

2 x 35 mm2

3u00d750 mm2+54.6 mm2+16 mm2

2 x 50mm2

3u00d770 mm2+54.6 mm2+16 mm2

4 x 16 mm2

3u00d770 mm2+70 mm2+16 mm2

4 x 25 mm2

3u00d795 mm2+70 mm2+16 mm2

4 x 35 mm2

3u00d7120 mm2+70 mm2+16 mm2

construction

Company Profile

Hongliang cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. The company mainly produces 1-35 kV power cable, ABC cable, AAC, AAAC, ACSR.

Our advantages

1. With more than 20 years manufacturing experience, our products are strictly in accordance with ISO, CE, UL and BV;

2. Good cost-control system, with highly-competitive prices;

3. Strong and Professional R&D team to meet your specific needs;

4. Fast delivery&reliable products are always the reason why you choose us.
