Product Description
A.used for :.38kV-0.66kV low voltage power supply system
B. Mainly used for thermal power plant and industry low-voltage systems
C. Installation: Indoor or outdoor
D. Standard:GB311.1-1997,DL/T620-1997
Product Feature
Material
The resistor is made from Nichrome, which with high efficiency of electric conductivity, high-temperature endurance, melting point is higher as 1400u00b0,small temperature coefficient, steady resistance value, corrosion resistance etc., We provide the products with the imported resistor material on the customer's requirement.
The Resistors enclosure is made from the imported aluminized zinc plate, the stainless steel plate or the cold-roll steel sheetsu00a0which features a beautiful appearance and good endurance of corrosion.
All of the screws are stainless steel A2-70 features high-temperature endurance and good corrosion resistance .
LZZBJ9 resin casting insolation enhanced type current transformer which produced by the Top-3 manufacturer in China.
Technics
The hidden binding structure Air-cooling system: the resistor dissipates heat through the current when there is fault. It is very important to dissipate heat and ventilate in time , in order to keep the equipment operate well. Because of considering the heating value when designing the ventilating system, our products equipped with the outer air-cooling and ventilating system to make sure the high efficiency of heat dissipating ,as well as with the characterism of water-resistance and dust-resistance.
Sealing features of cubicle: double ring seal cubicle door and the screw bolt fastening structure can enhance the protective performance of the cubicle with highest level of IPSS.
Different with the traditional grounding cubicle: we developed the special intellect controlled unit for the enclosure based on the market, which with the LED display and 32-digital single chip inside of it . The cubicle can monitor the unbalanced current, the resistor plate, the grounding transformer and the enclosure temperature, it also can be transfer into the controlling room and realize the unattended operation.
Product Specification / Models

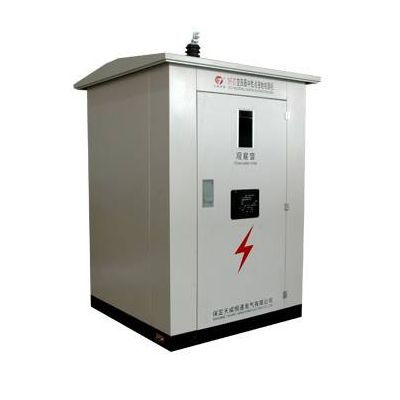

As the dedicated grounding resistors of transformer neutral points, the THT-DZ (G) low-voltage grounding resistors (cabinets) are mainly used in 0.38kV and 0.66kV low-voltage power supply systems.
Application / Models
As the dedicated grounding resistors of transformer neutral points, the THT-DZ (G) low-voltage grounding resistors (cabinets) are mainly used in 0.38kV and 0.66kV low-voltage power supply systems.
Other Information
rated voltage;
resistance value and the tap position;
make us know the requirement of material of the cubicle, IP protectional grade, the color, installing place and the line mode.
