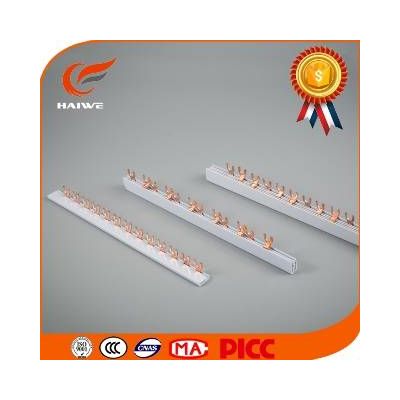

Fork U type 1p 2p 3p 4p 40A 63A 80A copper Mini circuit breaker MCB busbar

Application:

Electrical busbar is suitable for all kinds of building electrical appliances.Low voltage power cabinet,Distribution box,lighting box etc. Multi-way feeder distribution equipment.Connection by the main line and each feeder branch.



Features:

1.Increased contact area,reducing power consumption,reducing the temperature rise.

2.The busbar is in the insulation tank,The human does not touch the charged body.so it is safe,reliable,time-saving,convenient and cheap.

3.Made of pure copper,Good conductivity,low contact resistance and complete specifications.

4.Current:32/40/63/80/100A





Description:

Regulation of style: IEC664

Material of Busbar: E-CU-F25

Material of Insulation: PVC, PC/ABS

Short circuit strength: 50kA/250A gl

Disruptive strength: 36kV/mm

Clina stability: IEC68-2

Nominal voltage: 415V

Operating voltage: 4kV
