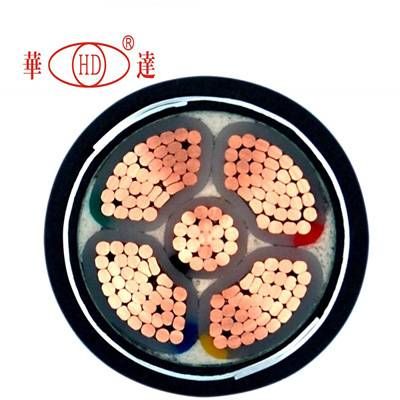

XLPE insulated and PVC sheathed armored Cable

XLPE insulated and PVC sheathed armored Cable applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.







1.U0/U :0.6/1KV



2.Standard Applied: IEC60502, BS7870, GB/T12706 .



3.Max.working temperature:90°C and 110°C as per requirement.



4.Conductor :solid or standard pure annealed copper



5.Insulation: XLPE



6.Cores: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E



7.Cross section area:0.50~630mm2



8.Sheath:PVC Sheath



9.Color:black or as per requirement



10.Armoured:steel tape armoured



11.Flame retardent or Fire resistance or Low smoke and halogen free or other property can be available



12.Wooden drum or as as per requirement



13.Certification:ISO9001, ISO14001,OHSMS18001,CCC,etc.



14.OEM can be available





15.Huada cables has very good sales over the world , enjoying a very good reputation based on top quality and most competitive price and service.

Product name:4 core xlpe cable



Voltage:0.6/1kv



Current:13-1113A based on cross section



Insulation:xlpe



Jacket:PVC



Armour:Steel tape armour



Color:Black or as per requirement



Company nature:Manufactory



Standard applied:IEC,BS,VDE,AS/NZS,GB Standard

NYY, VV

XLPE insulated and PVC sheathed armored Cable applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
