Europe standard dc ac inverter 2000W 3000W 5000w power inverter 12v 220v 5000w split phase inverter

1.ac inverter 2.Application :home ,power station

3.CPU intelligent management.

4. fast delivery with good quality

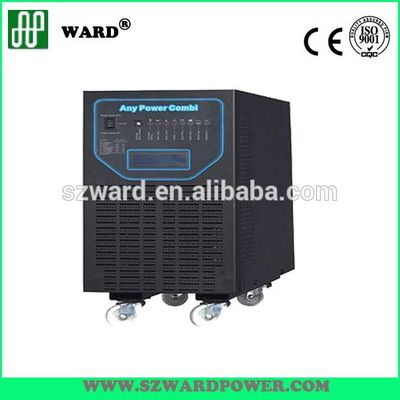

APP Series inverter



APP Series Inverter is a combination of an inverter, battery charger and AC auto-transfer

switch into one complete system with a peak conversion efficiency of 92%.

It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.

It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with

unprecedentedly high surge capability to meet demanding power needs of inductive loads without

endangering the equipment.



Feature of APP Series inverter

1.High High overload ability up to 300% of rated power(20 sec)

2.Low quiescent current, low power " Power Saving Mode " to conserve energy

3.4-step intelligent battery charging, PFC(Power Factor Correction) for charger

4.8 pre set battery type selector plus de-sulphation for totally flat batteries

5.Powerful charge rate up to 110Amp, selectable from 0%-100%

6.10 ms typical transfer time between battery and AC, guarantees power continuity

7.Smart remote control

8.15s delay before transfer when AC resumes, extra protection for loads when used with generator

9.Allows start up and through power with depleted batteries

10.30A/40A through current ability

11.Multiple controlled cooling fan

12.Extensive protections against various harsh situations

13.13VDC battery recover point, dedicated for renewable energy systems

Electrical Specvifications of inverter

Model APP

1000W APP

1500W APP

2000W APP

3000W APP

4000W APP

5000W APP

6000W

Inverter Output Continuous Output Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W

Surge Rating(20s) 3000W 4500W 6000W 9000W 12000W 15000W 18000W

Capable of Starting Electric Motor 1HP 1.5HP 2HP 3HP 4HP 5HP 6HP

Output Waveform Pure Sine wave/Same as input(Bypass mode)

Nominal Efficiency >88%(Peak)

Line Mode Efficiency >95%

Power Factor 0.9-1.0

Nominal Output Voltage rms 100-110-120Vac / 220-230-240Vac

Output Voltage Regulation u00b110% RMS

Output Frequency 50/60Hz u00b1 0.3Hz

Short Circuit Protection Yes, Current Limit Function (Fault after 1sec)

Typical transfer Time 10ms(Max)

THD < 10%

DC Input Nominal Input Voltage 12.0Vdc

( *2 for 24Vdc, *4 for 48Vdc)

Minimum Start Voltage 10.0Vdc

Low Battery Alarm 10.5Vdc / 11.0Vdc

Low Battery Trip 10.0Vdc / 10.5Vdc

High Voltage Alarm & Fault 16.0Vdc

High DC Input Recovery 15.5Vdc

Low Battery voltage recover 13.0Vdc

Idle Consumption-Search Mode < 25 W when Power Saver On

Charge Input Voltage Range Wide: 90~135VAC / 164~243VAC;

Narraw: 100~135VAC / 194~243VAC;

Output Voltage Depends on battery type

Charger Breaker Rating 10A 10A 10A 20A 20A 30A 30A

Max Charge Rate 35A / 70-90A Max (Charger Current Control)

Over Charge Protection Shutdown 15.7V for 12Vdc ( *2 for 24Vdc, *4 for 48Vdc)

Charger curve(4 stage constant current)

4 step digital controlled progressive charge Battery types ( *2 for 24Vdc, *4 for 48Vdc)

Battery type Fast Vdc Float Vdc

Gel U.S.A 14.0 13.7

A.G.M 1 14.1 13.4

A.G.M 2 14.6 13.7

Sealed Lead Acid 14.4 13.6

Gel Euro 14.4 13.8

Open Lead Acid 14.8 13.3

Calcium 15.1 13.6

De-sulphation 15.5 for 4hrs

Remote Control Yes. Optional

Bypass & Protection Input Voltage Waveform Sine wave (Grid or Generator)

Nominal Voltage 120Vac 230Vac

Low Voltage Trip 80V/90Vu00b14% 184V/154Vu00b14%

Low Voltage re engage 90V/100Vu00b14% 194V/164Vu00b14%

High Voltage Trip 140Vu00b14% 253Vu00b14%

High Voltage re engage 135Vu00b14% 243Vu00b14%

Max Input AC Voltage 150VAC 270VAC

Nominal Input Frequency 50Hz or 60Hz (Auto detect)

Low Freq Trip 47u00b10.3Hz for 50Hz, 57u00b10.3Hz for 60Hz

Low Freq re engage 48u00b10.3Hz for 50Hz, 58u00b10.3Hz for 60Hz

High Freq Trip 55u00b10.3Hz for 50Hz, 65u00b10.3Hz for 60Hz

High Freq re engage 54u00b10.3Hz for 50Hz, 64u00b10.3Hz for 60Hz

Output Short circuit protection Circuit breaker

Bypass breaker rating 10A 15A 20A 30A 30A 40A 40A

Transfer switch rating 30amp for UL & TUV 40amp for UL

Max bypass current 30amp 40amp

Mechanical Specification Mounting Wall mount

Inverter Dimensions(L*W*H) 382*218*179mm 442*218*179mm 598*218*179mm

Inverter Weight 16KG 17KG 20KG 24KG 35KG 45KG 45KG

Shipping Dimensions(L*W*H) 520*315*300mm 580*315*300mm 740*315*300mm

Shipping Weight 18KG 19KG 22KG 26KG 37KG 47KG 47KG

Display Status LEDs / Status LEDs+LCD

Standard Warranty 1 Year

wind and solar system
