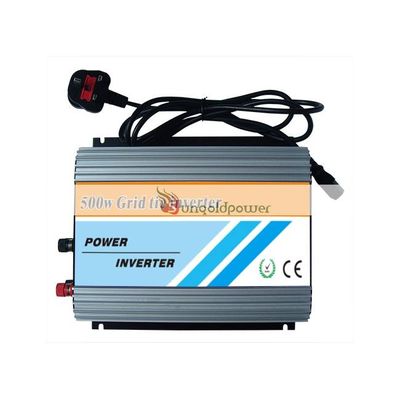

300w/500w/600w/1000w Micro Wind Grid Tie Power Inverter for Wind Turbine DC input

This model gridu00ad tie has designed for wind turbines.The grid tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home.The grid u00adtie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine wave and matches with the grid. There are 4 terminals on the left side of the inverter, 2 terminals will be connected to the DC output from the wind turbine, and 2 black terminals will be connected to dump load resistors.

Simple and safe installation

Low distortion output on all ranges

LED indicators to reflect power output rate

Stackable (connect in parallel for higher output)

Maximum Power Point Tracking (MPPT) - optimize power output

Plug and Play Design, simply plug into an outlet (GFI), no hard-wiring

Aluminum enclosure will act as heat sink to help dissipate heat

Island protection: Inverter will shut down during black outs.

Grid-Tied - sell green power directly back to the grid at a premium rate

Input DC Voltage Range : 10.8V ~ 30V

AC Output Continuous Power: 270W / 450W / 550W

AC Output Max. Power: 300W / 500W / 600W

AC Output Voltage Range: Switch at 230V Position 190V ~ 260V

Switch at 115V Position 90V ~ 130V

AC Output Frequency Range: 46Hz ~ 65Hz

Total Harmonic Distortion(THD): <5%

Power Factor: 0.99

Peak Inverter Efficiency: 0.92

Standby Power Consumption: <0.5W

Output Current Waveform: Pure Sine-wave

Recommend dump load resistor: 3 ohm/300w ; 5 ohm/500w ; 5 ohm/500w

Operating Temperature Range: -10 0C ~ 45 0C

Storage Temperature Range: -40 0C ~ 65 0C

Product Size/pc : 265 * 138 * 55mm ; 272 * 233 * 90mm ; 272 * 233 * 95mm

Package Size/pc: 295 * 190 * 100mm ; 332 * 265 * 135mm; 332 * 265 * 145mm

N.W./pc: 1.7kgs ; 4kgs; 4kgs

G.W./pc: 2kgs; 4.5kgs ; 4.5kgs







Input DC Voltage Range : 22-60v

AC Output Continuous Power: 270W / 450W / 550W / 950w

AC Output Max. Power: 300W / 500W / 600W / 1000w

AC Output Voltage Range: Switch at 230V Position 190V ~ 260V

Switch at 115V Position 90V ~ 130V

AC Output Frequency Range: 46Hz ~ 65Hz

Total Harmonic Distortion(THD): <5%

Power Factor: 0.99

Peak Inverter Efficiency: 0.92

Standby Power Consumption: <0.5W

Output Current Waveform: Pure Sine-wave

Recommend dump load resistor: 3 ohm/300w ; 5 ohm/500w ; 5 ohm/500w ; 4ohm/1000w

Operating Temperature Range: -10 0C ~ 45 0C

Storage Temperature Range: -40 0C ~ 65 0C

Product Size/pc : 265 * 138 * 55mm ; 272 * 233 * 90mm ; 272 * 233 * 95mm ; 352* 233 * 95mm

Package Size/pc: 295 * 190 * 100mm ; 332 * 265 * 135mm; 332 * 265 * 145mm ; 405* 275 * 145mm

N.W./pc: 1.7kgs ; 4kgs; 4kgs ; 4.5kgs

G.W./pc: 2kgs; 4.5kgs ; 4.5kgs ; 5kgs
