COMPACT PREWIRED Pre-wired Cable or connector LIMIT CONTROL SWITCH

SWITCH / SAFETY & CONTROL SW

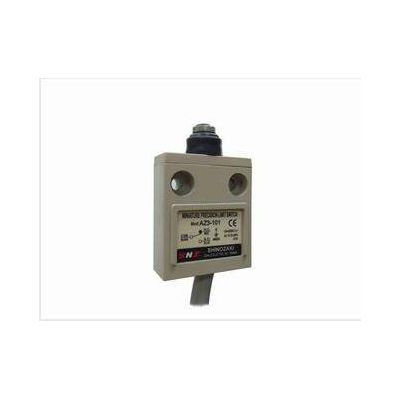

AZ3

LIMIT SWITCH

COMPACT PREWIRED LIMIT SWITCH, UP TO 5A 125VAC, 3A 250VAC

Compact construction

Pre-wired or connector versions

Rugged aluminum alloy dicast housing

Wide selection of actuators

Gang mounting capability

Cable length variations, standard 3mm

Side and bottom exit cable/connector

Simple two-screw mounting

Utilization category 5A 125V,3A 250V AC

Contact resistance 15m max

Maximum operating speed 1mm ~ 1m/s

Mechanical durability 1,000,000 operations (min)

Electrical durability 200,000 operations (min)

Adequate operating speed Mechanical:120 operationa/min,Electrical:30 operationa/min

Inslation resistance 100m min (at 500V DC)

Ambient temperature range -10u00b0C ~ +60u00b0C ( Protect against frost )

Ambient humidity 95% RH ( max ) Pollution degree 3 ( EN60947-5-1 )

Enclosure rating IP 67

Weight Approx 360g (cable length 3m)
