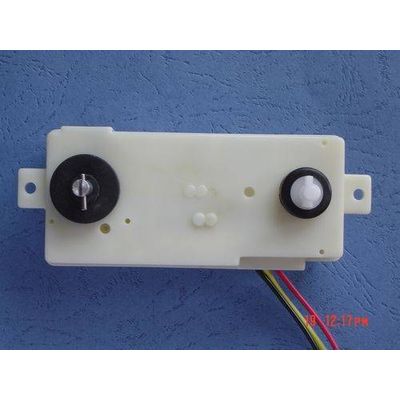

washing machine timer switch

It is a key acceossry of washing machine.

The timer is driven by spring.

The principal axis can control the cyclic process of clockwise,

stop and counter clockwise at specified angle and time.

This washing machine timer is designed as all-plastic structure.

It has the advantages of novel structure.

Exact time-operating and convenient used and installing.

1.Model:DXT15

2.Rated:AC250V 2.5A 60HZ

3.Operating Temperature:-10-+55

4.Operating Direction: Clockwise

5.Operating Torque: ≤0.883N.m

6.Insulation Resistance:≥100MΩ

7.Electrical Intensity: 1500V/1min

8.Setting Time Range:15min u00b12 min/310u00ba

9.Use Life: ≥10000times



10.Brand Name:Tianma

11.washing machine timer Type:Spare Parts of Washer

12.Washing machine timer Theory:Mechanical



13.General Packaging:according to customer requested

14.Supply Ability:200000piece/pieces per Month

15.Delivery Time:15-20days after receiving the deposit

Company Profile:

Hangzhou Tianma Timer Factory was founded on 28th May 1986.

We are one of the earliest private corporations in Hangzhou.

We have an assembly building of 21000 square meters, equipped with 18 assembly lines, 35 plastic machines and 45 accurate punching machines.

We staff 750 workers. Our annual production value is 200 million Yuan.

Carrying out ISO9001 quality system, we have received UL, TUV, ITS, CCC, CQC and RoHS approvals for our products.
