V5-H high performance vector control variable frequency drive (VFD)

V5-H series high performance vector control variable frequency drive (VFD) is bases on high performance vector control technology

Available voltage rage:

200 VAC - 240 VAC (180 VAC - 260 VAC): 200 V, 220 V, 240V

380 VAC - 480 VAC (323 VAC - 528 VAC): 380 V, 400 V, 415 V, 440 V, 460 V, 480 V

690 VAC - 790 VAC (587 VAC - 793 VAC)

575 VAC: available for customized design

1140 VAC





Vector Control 1:

Offering excellent vector control performance and insensitive to motor parameters.

Startup torque: 0.50Hz 180% rated torque

Speed adjustment range: 1:100

Speed stabilization precision: +- 0.5%

0.50Hz controllable motor stable operation with 150% rated torque (large torque at low frequency).

Vector Control 2 (Without Encoder Speed Feedback):

Precise speed sensorless vector control technology realizes AC motor decoupling, enabling the DC motorization of operation control.

Startup torque: 0.25Hz 180% rated torque (large torque at low frequency)

Speed adjustment range: 1:200

Speed stabilization precision: +- 0.2%

0.25Hz controllable motor stable operation with 150% rated torque.

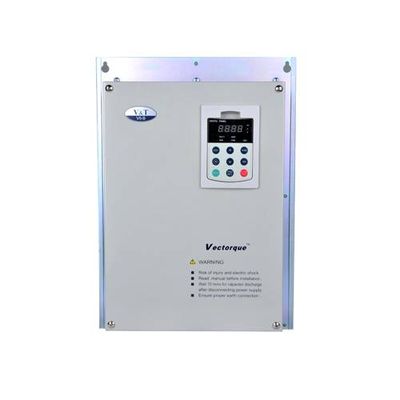

V5-H-4T90G Three-phase 380V-480V sensorless vector AC drive for constant torque/heavy-duty application
