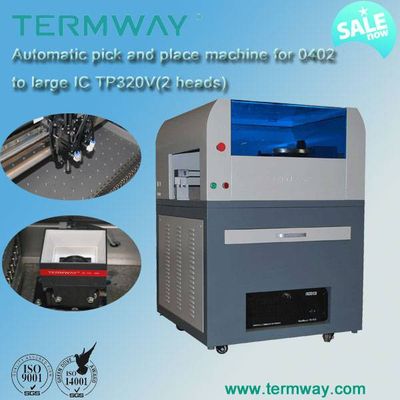

High Speed Pick and Place Machine TP320V (TORCH)

TP series is a fully automatic vision SMT pick and place machine, it can mount a variety of components through the vacuum nozzle can be mounted .it is the most cost effective automatic placement equipment on recently market.This machine is suit for most of the SMD components, such as 0402,SOIC,PLCC and QFP IC; With the vision position system, meet the needs of mounting high precision 0.5mm of QFP IC or BGA . Beside the standard circle reference point, the square ,which is not the PCB solder paste screen printing pad ring perforated pad, can also be as a reference point to know.

0402 and above SMD component, QFP, PLCC IC chips

the smallest IC chips mounter in china

component: SMD capacitor and resistor 0603 and IC (below 20mm)

Typical pick&place speed: 4000-4500cph

Max moving range of Z axis: 10mm

Max circuit board size: 350*210mm

Position: Visional position

Max mounting speed: 5000 cph Programme: Video study/ Keyboard input Operation system: WINDOWS XP Weight: 350kg Power: 220V,50Hz,2Kw .
