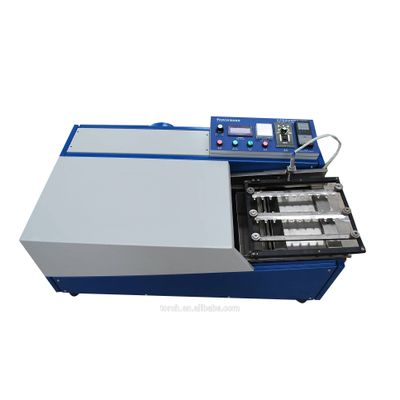

mini size desktop Bench-type wave soldering machine TB680

Specifications

Mini-type, Desk wave soldering, economic machine. soldering tin temp, conveyor speed, wave height, preheating time adjustable









Single wave soldering machine TB680



Single wave soldering machine TB680 is the economic machine. Its soldering tin temperature, conveying speed, height of the wave, preheating time and so on can be adjusted. Digital display for the temperature of the soldering tin. It is an ideal choice for producing small batch and developing new products.







Features:

1.High flexible: it is easy to control individual soldering technical parameter for high quality soldering.

2. Digital display of soldering temperature.

3. High reliability: high temperature sintering heating element make the machine perform steady and reliable.

4. Widely used: TB680 can replace soldering iron and soldering device in middle and little batch of production. It can satisfy every requirement of soldering production.

5. High efficiency: Productivity improved

6. Reasonable price, long life service.

7. Small size and power consumption. It meets the requirements for the production line in the laboratory and factory.







Technical parameter for TB680 :



Model

TB680



The max power consumption

3Kw



Solder pot capacity

37Kg



PCB size(Lu00d7W)(mm)

Max: 200 X 270mm



Temperature range

200~300u00b0C



Preheating temperature

90~130u00b0C



Wave height adjust range

5~ 10mm



Melt time

60min



Spray work mode

froth



Power supply

220v 50Hz



Conveyor speed

0.5~ 2m /min CTV



Dimension

840 X 540 X 380mm



Weight

70Kg
