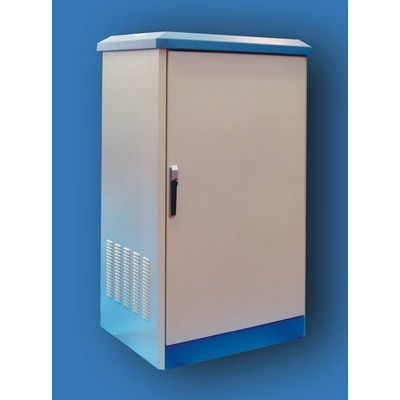

YF-CSA Outdoor Cabinet

1.The cabinet takes the YF-ES cabint as the foundation . It adopt the double wall type design . It is composed with main body ,roof , the rear panel , the side panel and the base

2.The double wall type rear panel , the dual side panel , the bolts are fixed by inside . The double wall type gate has the bikini fixing device , after closes the gate not to be able to see the bolt from outside . leans the kneading board to cover the cabinet and the foundation , eliminated entered the cabint by the compulsory measure weakness

3.Inside and outside side kneading bord (apacing 25 mm) the band provides ventilates the channel , supports the cabinet internal heat change and may reduce the sunlight illumination the influence .

4.The roof panel has the rain awning with the size all around stretches out 25mm and 75mm high . Which have the intergrity well ventilated to clamp the trough and ensuring the exchanging of seal.

5.The base may use the entire block or divide three parts of sealed panel to seal

6.The cabinet can adopt 19inch structure to install , it can install the mounting panel or according to the custom design also

7.The natural wind cooling . the cabinet can install fans on the top cover and punch the hole with dustproof cover at the bottom of two sides

8.Protection rank : IP55 EN60529/10.91

9.We can design the structure as the customer requirement .



Surface Treatment :

Degreasing , phosphating , powerder coating .

Material :

Cold rolled steel or stainless steel

Color :

Top cover and base are RAL5012 the others is RAL7035
