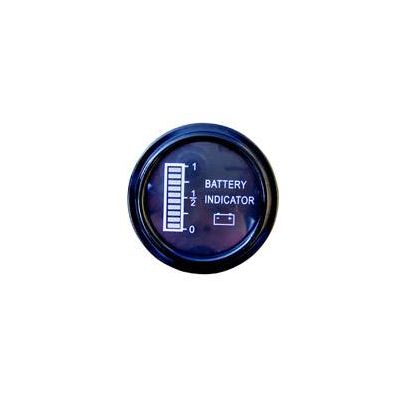

battery discarger indicator (Round)

A 10-bar high light LED displays the state of charge successively, bar by bar.

At 70% depth of discharge, a flashing LED signals an "energy reserve" alert.

At 80%, alternately flashing LEDs provides an "empty" status warning.

It is compact and easy to install.

Recognizes improperly charged battery.

Key switch activated LED display.

Terminals and Wiring

1. Battery +

2. Battery -

3. Output Signal

4. Key Switch Specifications



System Voltages 12V, 24V, 36V, 48V, 60V, 72V

Operating Voltage u00b1 25% of normal voltage

Operating Temperature 20u00b0 C to +75u00b0 C

Storage Temperature 40u00b0 C to +90u00b0 C

Environmental Enclosure IP46

Shock & Vibration SAE J 1378

Case Material ABS KJW

Reset Conditions

Battery Charging Reset (BCR)

During charging, the BDI will light LED bar by bar according to the increasing battery capacity, the BDI will reset to the full state when the BDI measu00ac Ures the voltage per cell up to 2.35 volts or higher.

Open Circuit Reset (OCR).

Upon reconnection of a battery, the BDI will reset to the full status if it measu00ac Ures 2.09 volts per cell or higher.
