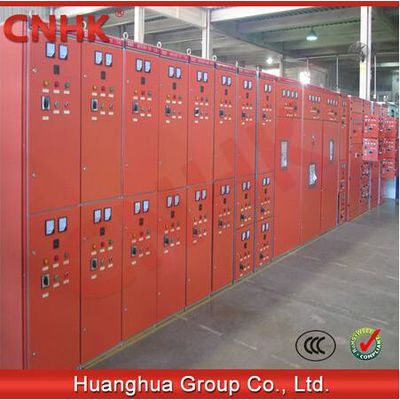

Frequency Inverter Cabinet



1.Product Overview







1.1 AC low voltage distribution cabinet is a new type product, is designed to meet the requirement of energy sources ministry and power consumers on safe, economical, reasonable and reliable basis. The product has characters like high breaking capacity and good dynamic and thermal stability, flexible electric scheme, convenient combination, high seriality, high practicality, stylish structure and high degree of protection etc, it's an updated product instead of traditional low voltage complete switchgear.



1.2 Application for power distribution system, like power plant, power station, industrial and mining enterprise etc.

2.Features



2.1.Compact design



2.2.Easy operation and installation



2.3.Reliable interlock



2.4.Less Maintenance

2.Technical Data





Item

Rated voltage (V)

Rated current (A)

Rated short circuit breaking current (kA)

Rated short time withstand current (1s) (kA)

Rated peak withstand current (kA)

1

380

A.1000

B.600(630)

C.400

15

15

30

2

380

A.1500(1600)

B.1000

C.

30

30

63

3

380

A.3150

B.2500

C.2000

50

50

105

We also supply the following switchgears:

Rated votlage 40.5KV switchgear(for 33KV system)

KYN61-40.5 withdrawout metal-clad and metal-enclosed switchgear

KYN10-40.5AC drawout metal clad switchgear

KYN1-40.5 AC withdrawable metal-clad enclosed switchgear

XGN-40.5 fixed AC metal-enclosed switchgear

GBC-40.5 Handcar HV switchgear



Rated voltage 24KV switchgear(for 22KV,20KV, 15KVsystem)

KYN-24 withdrawable metal-clad switchgear

HRM6-24 Ring net SF6 circuit breaker switchgear ( for 22KV,20KV, 15KVsystem )



Rated votlage 12KV switchgear(for 11KV,10KV,6.6KV system)

KYN28A-12 withdrawable metal-clad enlosed switchgear

XGN-HKGN8-12 Fixed metal clad enclosed switchgear (for 11KV,10KV,6.6KV system)



HXGN-12 Ring Net Vacuum circuit breaker switchgear ( for 11KV,10KV,6.6KV system )



XGN15-12 Ring Net SF6 circuit breaker switchgear (for 11,10,6.6KV system)





Rated voltage 0.4KV low voltage switchgear(380V,400V,433v,440V system)



GCK LV withdrawable switchgear



GCS LV withdrawable switchgear



HMNS LV withdrawable switchgear



GGD LV distribution cabinet



XL-21 Power distribution box



MOTO Start swichgear



Modula 630K sersies of standard LV distribution box



plus 2.0 LV switchgear





GZDW series of microcomputer monitoring high-frequency DC switchgear



Soft start switchgear



Residential, customized power distribution box



PZ30, PZ40 distribution box



outdoor mobile box



Capacitance compensation box







The other switchgear (from 0.4KV to 33KV)We can OEM , ODM for you.)
