advanced automatic concrete pole making machine design

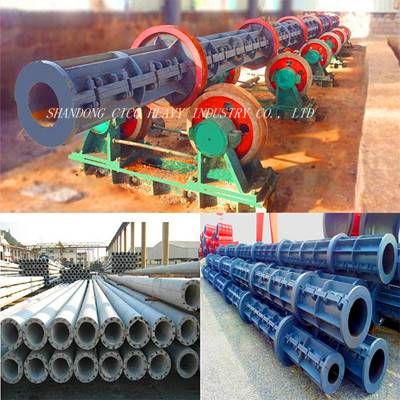

Centrifugal Pole Spun Machine is composed of basis,the supporting wheel,bearing seat, motor,control cabinet and driving shaft, It is the key equipment in production of precast cement poles. Whose coupling shaft we produced is one axis connection, effectively avoid the broken-axis phenomenon caused by the stress concentration; centrifugal wheel flange bracket Can Be dismantled, the repair and service of the centrifuge is more convenient.



In general, spinning time is 16min-18min, and now producing enterprises Some Will Be Shortened pole centrifugal time is 12min to, this is the limit of time centrifugal process, in order to get qualified products must Develop a Rigorous process system, the high speed centrifugal Time Should Be Accounted for 40%, in order to shorten the centrifugal speed must make the accuracy of Installation and adjustment of the centrifugal Conforms to the standard, the pole mold precision to meet the requirements, can meet the high speed requirement, Improve the density of concrete, shorten the time to discharge excess water, centrifugal steel mold of beating is inevitable and allowed, Such As beating in the ranks of 5mm ~ 10mm Range is beneficial to the concrete settlement and compaction, ranks over this is not normal , Even is very Harmful.



The system is FORMED by low centrifugal pole, speed of the.



1) Low-speed (slow): When the concrete slump


2) Medium: mainly to make equipment and products from shock and vibration impacts, while ensuring discharge excess water slowly and gradually compacting concrete, rotate 1.5min ~ 2min.



3) High speed: the speed of rotation of the molding to ensure discharge excess water in sufficient centrifugal force, and ensure the correct shape speed not less than 360rpm, time 7min ~ 8min.



3) High speed: the speed of rotation of the molding to ensure discharge excess water in sufficient centrifugal force, and ensure the correct shape speed not less than 360rpm, time 7min ~ 8min.

1. We're professional manufacturer of concrete pole machine & matching equipment, supply complete production equipment such as tensioning machine, winding machine, button head machine, straightening machine, boiler, concrete mixer, cranes and other accessories.



2. Spinning time: 16-20min for one pole (low speed--medium speed--high speed)



3. Pole machine wheel span: 2m/unit



4. Curing time or natural drying: 4 hours (durable, anti-crack)



5. We provide installation, commissioning, trainning, and log life mold maintenance
