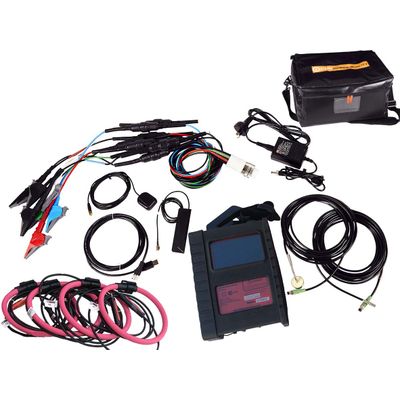

Miro Power Quality logger PQ35/45

The MIRO Class A range of portable power quality analysers are high precision instruments that are robust, reliable and weather proof!

The Miro is built for high performance and can be installed with minimal or no configuration set up, due to the optimised default configuration. Just connect and walk away!

Three or four voltage channel models are available.

Main Features:

•  Highest safety rating! CATIV, 600V (Miro PQ45).
• Isolated input channels.
• Logs automatically upon power up.
• Powered from Phase A.
• Optional Remote Cellular Communications
• Multiple download methods i.e. Local, TCP/IP, FTP,
• Automatic Data Retrieval (CiDR), DNP3 (SCADA).
• Protective rubber holster, bracket and magnetic legs.
• Gapless logging.
• Automatic current sensor detection

Applications Include:

• Load and energy surveys.
• Nuisance tripping investigations.
• Monitoring motors to determine the cause of overheating.
• Monitoring capacitor banks and VSDs.
• Load unbalance in three phase systems.
• Transformer monitoring.
