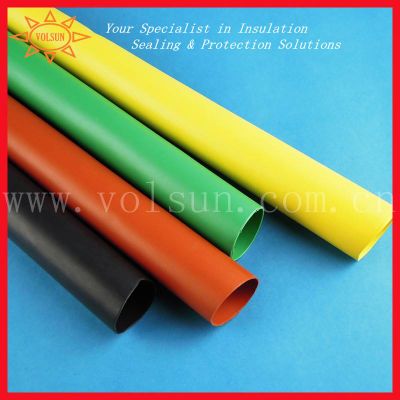

Heat Shrink Bus Bar Tubing

Volsun MPRS-36KV-B is a series of medium and heavy wall heat shrinkable tubing made of a specially formulated cross-lined polyolefin, which is typically designed to be used on both circular and rectangular copper or aluminum busbars. Standard color is orange red. The material carries high resistance to splitting, good solvent resistance and excellent tracking resistance performance. The tubing shrinks easily with industry standard methods, forming an aesthetically appealing insulation cover.



The tubing is designed for insulating rectangular, square and round busbar rated through 36KV. It will also cover and insulate inline bolted connections of rectangular bus bars.





Min. Full recovery temp.: 120 C

Good shrinking performance

Features:

Medium /Heavy wall ,

High Flexible;conforms to bends

Halogen free, cross-linked, modified polyolefin

Excellent UV and weather resistance

Good tracking resistance, chemical resistance

Excellent electrical properties

Flame retardant; self extinguishing

Up to 36KV

I.D. As Supplied: 15~200mm



Wall thickness: 2.0~4.2mm





Minium Order Quanties 1m

Applications:

For insulating electrical bus bars:

For voltage ratings up to 36KV

For rectangular, square and round bus bars

For inline bolted connections of rectangular bus bars

For copper or aluminum bus bars

For use in metal-clad switchgear

For use on metal-enclosed bus bar

For use with substation switchgear

standard colors: red, yellow, green
