Product Description
The T branch line fault or terminal user fault in 10kV overhead distribution line will cause the outlet of substation switch trip, because the incoming line switch protect time and outlet of substation switch protection time cannot be reasonably set. If it is a permanent fault, the substation will not be successfully reclosed; if so, a local MV user accident will lead to power cut in the whole 10kV distribution line.
Product Feature
Current Transformer of outdoor vacuum power accept load break switch
Inner there is a zero-sequence CT, with transformation ratio 20/1. It should keep linear relationship during 0.2~6A, and the transformation ratio deviation should be lower than 3% on condition of rated load; when 1 time side zero-sequence current is 400A, the 2-time output efficient current should be no less than 6A. The CT is covered by epoxy resin to improve the mechanical strength.
Voltage Transformer of outdoor vacuum power vacuum load break switch
Its transformation ratio is 10kV/220V, capacity 50VA. The electric power for controlling equipment and low voltage element is supplied by PT 2-time. In addition, there are 2 single phases (A phase and C phase) CT in it, for current protecting, transformation ratio is 600/1.
Watchdog of the outdoor vacuum power accept load break switch

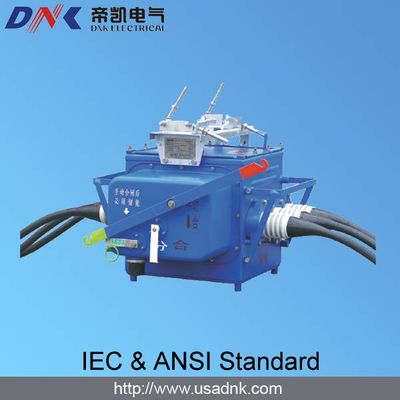

If install a power accept circuit breaker (usually called" watchdog") at the responsible point of branch line or terminal user, it will judge the fault (over current, short-circuit, single phase earthing, etc.), automatically disconnect it, and keep normal electric power for non-fault users, suitable for incoming T connection or terminal connection as well as other satisfactory branch connecting positions.
Product Specification / Models
Rated Voltage: 12kV
Rated Frequency: 50Hz
Rated Current: 630A
Rated Peak Withstand Current: 40kA
Rated Short Circuit Making Current: 40kA
Mechanical life: 10000times
Net Weight: 210kg
Application / Models
1 Ambient Temperature: -45~+40
2 Max Wind Speed: no more than 35m/s
3 Elevation: no more than 1000m, Seismic Intensity: no more than 8
4 Humidity: no more than 90% for monthly average humidity, no more than 95% for daily
5 Thickness of Covering Ice: no more than 10mm
6 Application Site: No danger of inflammability and explosion, chemical corrosion or violent vibration
7 Neutral Point Earthing Method: ungrounded, grounded through arc extinction coil, grounded by small resistance.
