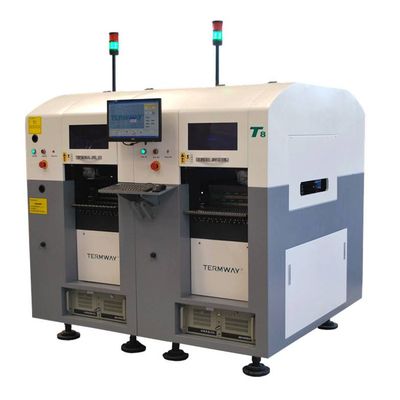

automatic high -speed 01005 pick and place machine

Specifications

1. What is T8? The homophonic of T8 is Post Hegemony. It is the realaa Patch Overlordaa

in SMT industry in the future.

2. T8 i





the bricks and windows.



Model

T8



Mounter head

8 heads



Mounter area

50mm*50mm~350mm*350mm(noce plate feeding)



50mm*50mm~1200mm*350mm(Multiple Plate feeding)



Moving System

X axis moving coil motor+linear encoder



Y axis servo motor driver+Ground ball screw+linear encoder



Typical Max speed

15000cph

Theoretical Max mount speed

22000cph



X.Y axis precision

u00adu00ad+-0.001mm

Repeat mount precision

+-0.015mm



Position manner

Visional position

Z axis max move range

30mm



Component available

Minimum 01005-38*38*8.5mm(48*48optional)



Programme method

Automatic data input/Video learning/keyboard input



Type of component

MAX104 pcs of GFTA-08S feeder+4pcs IC



Feeder qty.

1.MAX104pcs of GFTA-08S;



2.Single groups adjustable feeder,MAX90pcs GFTA-08S feeder



3.Double groups adjustable feeder,MAX76PCS GFTA-08S feeder



4.3 pcs IC tray,MAX78 pcs GFTA-08S feeder.



5.4 pcs IC tray,MAX52 pcs GFTA-08S feeder;



6.Single group adjustable feeder,3 pcs IC tray,MAX64pcs GFTA-08S feeder;



IC tray qty.

The maximum number 4pcs



Compressed air

80psi(0.5Mpa,gas flow 80L/M)



Operation system

WINDOWS

XP power

220V,50Hz.4KW



weight

1692KG

Dimension

1685(L)*1550(W)*1440(H)





























Function introduction:



1. With super high precision moving platform technology



which is made by integrated design of Natural granite.



Make sure T8 can get to use for more than10 years



without any effect on moving precision. Meanwhile,



integrated structure ensures a very excellent function in



shock resistance.

















2. World-class top speed motion systems: Import



European original magnetic levitation high-precision



linear motors and encoders, to minimize mechanical



wear and ensure X-axis with high-precision and



high-speed performance for long-term use.



High-speed performance can up to 4M / S.























3. The patented technology of non-stop scanning photos



makes high-speed placement come true. Maximum



vision mounting speeds up to 28000CPH and the actual



placement speeds up to 15000CPH.







4.Configured with SMART feeder which is the real electric intelligent feeder.The machine can automatically recognize feeder wherever it comes,make sure the plug and play,save the programming time of picking components.Can save more than 1/3.Probe contactless smart feeders can make you more easy to loading and unloading the component.























5. Industry leading vision system: Germany industrial digital



cameras and high quality lenses is used, make sure the high



quality and high accuracy.























6. Intelligent board transmission system can automatically adjust the width and plywood. Complete



your automated intelligent production.







7. Configurable vibration feeder, IC tray and special components bulk trays can meet your all kinds



of specific needs.



























8.Multi-mount head can be installed seamless, and easy to change according to different requirements.Can be equipped with multi-functional mount head( Model:TH62),High speed mount head(Model:TH61)and high speed multi-functional mount head (Model:TH64)















































9.The factories of Termway around the world have set



up the quality management system and environmental



management system, and achieved international



authentication of ISO9001: 2008 and ISO14001: 2008.
