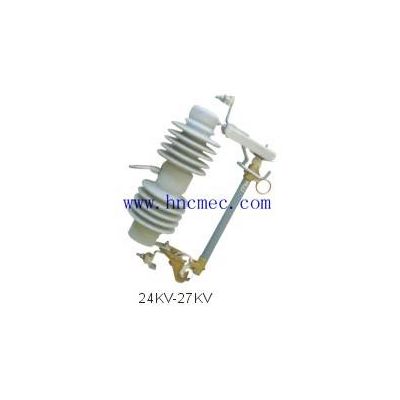

Fuse cutout

Drop-out Fuse cutout is outdoor used high voltage protective device. To be connected with incoming feeder of distribution lines it mainly protect transformer or lines from short circuit and overload, and on/off loading current.



Drop out fuse cutout is composed of insulator supports and fuse tube. Static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. Fuse tube is composed of inside arc-extinguishing tube, outer phenolic compound paper tube or epoxy glass tube

Voltage from 11kv to 36kv

Color brown or grey

Standard IEC

Model: RCFC-6

GW5-40.5 series outdoor type disconnector is a outdoor hv switchgear equipment with the rated voltage of 40.5kv,50hz wich will be close-open during the power line without load in order that HV base line,breaker can be repaired on time.
