automatic pick and place machine with inline system/LED mounter/high speed SMT pick and place machin

Specifications

The line is used for mounting various kinds of LED tube, 3014(1206).3020, 3528(1210), 5050 all kind of LED component and SMD com









Product Description:

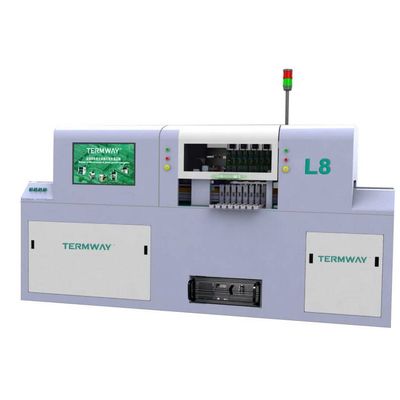

L6/L8 is a professional LED placement machine, it can connect with full automatic stencil printer and reflow oven, achieves LED circuit board high-volume assembly, on-line, high speed, high accuracy and so on.















Features







1. Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

2. Mounting head driving system uses servo motor, together with high precision ball screw to achieve the completion of the LED component picking and placing.

3. 6/8 groups of mount head improves production efficiency of 400%/500% than 1 group.

4. Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.

5. Different sizes of feeder can meet different requirements of LED mount.

6. Cost-effective LED chip machine is most suitable for high-volume LED production.

7. The whole machine is controlled by industrial computer with professional software, easy to operate and use.

8. Easy to import CAD data of the circuit board.

9. Stable and easy to complete the programming and placement of LED panel board







10.Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

11. The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

12. Software can realize to achieve automatically 6/8 mounting heads function.

13. Software increases the XYZ axis detection limit when moves

14. Software increases multi-grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.

15. PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC)position and mount.

16. The machine achieve the online transmission of the board, effective labor-saving, efficiency, compared to similar products, you can save at least one operator. If you configure the SP400 Automatic screen printing machine, you can save at least two operators, improve the production efficiency of the entire production line and reduce the cost of long term use at the same time.
