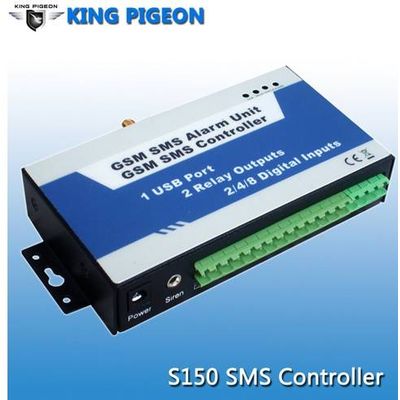

gsm remote controller switch 12v dc S150

The GSM SMS Controller alarm s are special for remote switch on/off machine, equipments, and also it supports digital inputs for different detectors like water level detectors, PIR motion detectors and so on.



One of the advantages of them is when the inputs recovery can alert by SMS, and with one interlock Relay output, one SMS Command switch on/off relay output.



When alarm occurrence, will send definition SMS text and dial the user mobile phones.

1.GSM Frequency: 850/900/1800/1900Mhz;

2.1 Independent Output Relay (240VAC3A) can be switched ON/OFF by sending a SMS text;

3.1 Alarm-Link Output Relay (240VAC3A) can be switch on 0-120minutes if controller unit triggered;

4. 2/4/8 Alarm logic digital inputs, NC or NO and EOL is optional;

5.3 SMS Alert numbers and 5 Alarm dial Telephone numbers can accept to the alarm message;

6.Two-way voice communication by external microphone and speaker;

7.Supports armed, disarmed, inquiry status, switch on/off Output Relay by SMS Commands;

8.Password protected, prevents unauthorized user;

9.Can be set up and programmed from PC Configurator by USB cable;

10.Time stamped alarm messages.

11.Backup rechargeable battery inside, can work for 24hours when AC Power goes off.

12.Can be operated from anywhere, no distance limit;

13.Based on GSM Network, applied to many applications.

GSM Frequency:Default: 900/1800/1900Mhz , Optional: 850/1900/1800/1900Mhz

DC Power supply:Standard adapter: DC 12V/1.5A

SIM Card:Supporting 3V SIM Card

1. Security Alarm System applications;



2. Supervision and monitoring alarm systems;



3. Automatic monitoring system;



4. Vending Machines security protection;



5. Pumping Stations, Tanks, Oil or Water levels;



6. Buildings and Real Estate;



7. Weather Stations;



8. River Monitoring and Flood Control;



9. Oil and gas pipelines;

GSM Controller unit *1



AC/DC Power adapter *1 (AC100~240V to DC 12V/2A, UK/USA/EU/AU plug available)



CD (PC Programming tool and User Manual) *1



GSM Antenna *1



Connectors *1 set



2.2Kohm Resistor *8 pcs (for End of Line wiring connection)
