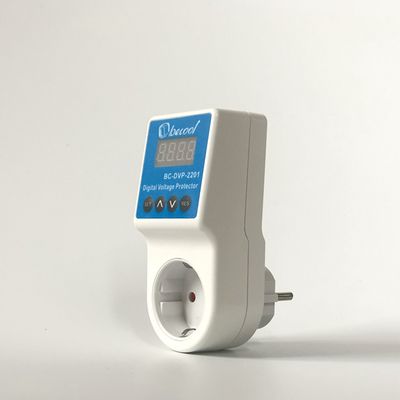

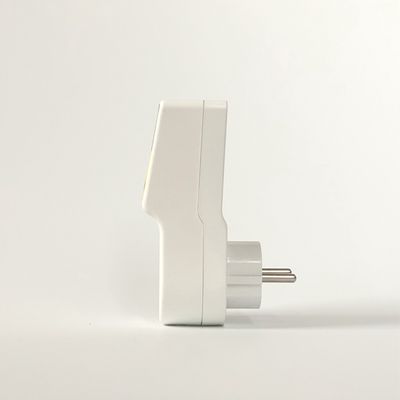

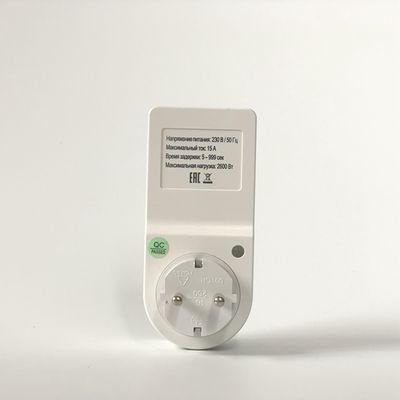

This is a voltage safety protector, good for an automatic protection of the home appliances in case of under-voltage, ultra-voltage and electricity stoppage. For instance, it may be always harmful to the normal operation, cut their service life, or even burn down the compressor motors for air-conditioners, refrigerators and freezing cabinets if the supply voltage is too low or too high. Especially, instant power stoppage and restarting supply with the electricity net creates a strong voltage impact which is very hazardous and may damage the compressors. This protector applies a digifax technique, which can immediately disconnect the load supply and provide the compressor with a time-retardant power reconnection with a perfect result of protection for the compressor.
Model | VP-2166D | |
Nominal Voltage | 110V | 220V |
Rate Current | 10A 15A 20A | |
Frequency | 50/60Hz | |
Over-voltage Protection | 135V | 260V |
Under Voltage Protection | 85V | 165V |
Surge Protection | 100 Joules | |
Wait Time | 30S 60S 90S 180S optional | |
Response Time | <10nS | |
Plug/Socket | EU/ US / UK / AU / MU | |
Material | ABS ( Fire-proof PC optional) | |
Display | LED Display | |
Package | Blister or Color box | |
Operatung Temperature | -20u2103 to +60u2103 |
