PW636i-F IEC 61850 Testing Tool Analog-Digital Relay Test Kit

Home

Electrical & Telecoms

Relays

PW636i-F IEC 61850 Testing Tool Analog-Digital Relay Test Kit

Min. Order: 1

Payments: L/C, T/T

Delivery: -

Origin: China

Packing: Regular

Inspection: -

Remarks: For price quote please contact info@relaytest.com

Contact Supplier

Favorite

Inquiry Basket

Product Attributes

Company Profile

Logistics and other information

Product Details

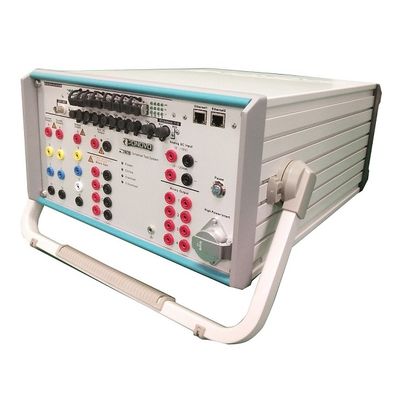

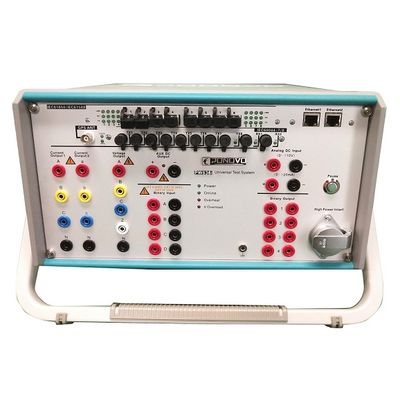

The PW636i-F (6*32A, 4*300V) is a computer aided relay testing equipment. One of the most significant features of the relay test set is its high power capacity for its current amplifiers. It is the ideal relay test solution for applications which require large current output. It's with IEC61850 GOOSE&SMV.

Features

6*32A, 4*300V
Aux DC (0-300V), DC measuring inputs
8 binary inputs, 8 binary outputs
Adjustable threshold (0-400V) for binary inputs
In-built analog monitoring and recording function
Can be upgraded to support the test of IEC61850 complied relay: GOOSE & SMV.

Main Specifications

Current
Range	6 x 0~32A
Power(typical)	6x 400VA at 32A 3 x 700VA at 64A
Accuracy (typical)	<0.05% rd+0.02% rg. at 0~32A
Voltage
Range	4 x 0~300V
Power(typical)	4x 75VA at 300V 3 x 150VA at 300V
Accuracy (typical)	<0.03% rd+0.01% rg. at 0~300V
Frequency
Sine signal	1 … 1000Hz
Transient signal	dc … 10.0kHz
Accuracy	0.3ppm
Phase angle
Range	-360°~+360º
Accuracy (typical)	0.02º
Auxiliary DC supply	0~300V
Power	88W at 110V, 176W at 220V, 90W at 300V
Binary input
Number	8
Type	0-400Vdc threshold or potential free
Counter input
Number	4
Sample rate	25kHz
Binary output
Number	4
Type	Relay
Number	4
Type	Semiconductor
Low level output
Number	12
Accuracy (typical)	0.025%
DC measurement
Voltage measuring	0…±10V
Current measuring	0...±20mA
IEC61850	GOOSE,SMV
Dimension	360208467mm
Weight	23kg
