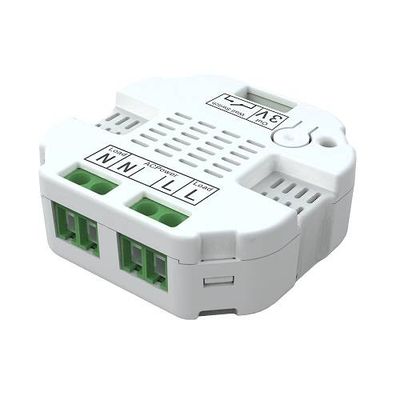

Z-Wave In-Wall Dimmer Module Micro Smart Dimmer

The 2nd edition of the Aeon Labs Micro Smart Dimmer is a low-cost Z-Wave light dimmer specifically used to enable Z-Wave command and control (on / off / dim) for existing in-wall dimmers. It can also report immediate wattage consumption or kWh energy usage over a period of time.

The wireless module is powered from the mains supply and is a three-wire design which requires a neutral connection. In the event of power failure, non-volatile memory retains all programmed information relating to the units operating status.

The wireless protocol is based Z-Wave which provide a mesh network for commands to hop from node to node for reliability.

1.On/Off/Dim control via Z-wave

2.Small form factor

3.3-way capable,3-wire installation

4.Optimized antenna range

Low-cost Z-Wave energy meter and on/off/dim lighting dimmer

On/Off/Dim control via Z-Wave, manual Wall Dimmer and/or built-in button

Small form factor that fit in most gang boxes worldwide

Latest Z-Wave protocol and commands

Supports Z-Wave Explorer Frames. Repeats Z-Wave messages

3-Wire installation

3-Way capable. 3-Wire installation. Fits in most worldwide gang boxes

Optimized antenna range

Certifications: FCC, cUL, CE, ROHS

Powered by 90-260VAC, 50/60Hz

Output: 2.5A maximum output

Radio frequency: 908.42Mhz (US), 868.42MHz (EU)

Transmitting Power: 0 dBm

Range: 15 meters

Control Function: triac

Status Indicator: LED

Operating Temperature: 0-70 Celsius

Max Operating Humidity: 95%

Dimensions: (52x49x18.5mm)
