smart lighting control system software

KSF enlighten engineering Co., Ltd. after many years, at the request of needs Smart light application, has designed an intelligence and modular system which has enable the system to be really simply, cost savings and easy application. Smartlight Intelligent Control System KSF enlighten engineering has developed from a simple stand-alone version of street light to support cross-regional, multi-service access and multi-functional service platform.



Smart control center runs based on the software programmed, in accordance with period of time directive. Smartlight system set street lighting control, dimming and switching time control, do only once a year or at the time as per your wish, switching/dimming function parameter settings, such as intelligent control (late at night/when no one, low lighting or closed) and holidays smart regulation (automatically extended holiday lighting and enhance brightness) function; the control function will be performed automatically till the next time you have another setting.



Center data base:



The system has a Center database which contains all the data information to collect daily data statistics, reports of statistical data, and GIS map for quick and easy reference.

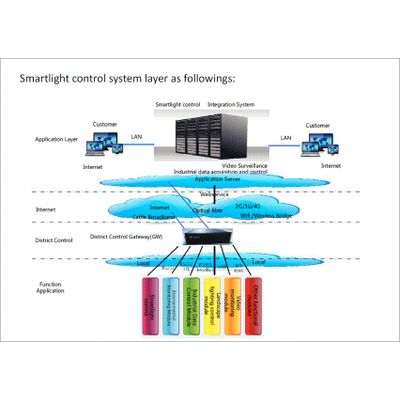

Network design:



strong system capacity expansion Distributed network architecture, each unit is independent with each other, system can support up to 500 or more regional control gateway access; control the lights above or around 50000. Control gateway of each region is independent, without affecting the operation of other equipment. When communication networks failure with control center, the area control gateway can be used as a stand-alone operation subsystem.

System feature



1. The system provides the universal data interfaces, the system function can be extened easily. It can connect with MIS/OA, GIS system, realizing the sharing of information;



2. It can be accessed from mobile phone, maintenance people receive the maintenance-reporting information in real time, get the situation of the maintenance, on-off control of the lighting during emergency can be realized easily via the mobile phone or on PC.



3. It utilizes the communication network of nation's telecommunication net work, choose the telecommunication of good signal quality and wide coverage, thus the system can connect automatically with the signals of the closest communication base station, guaranteeing the normal system operations;



4. The monitoring equipment and the equipment of the street lamp system are connected with each other by mature control technologies with superior security. The monitoring equipment will not interfere with the street lamp system.



5. The monitoring system monitors various equipment and environments of the street lamp system such as the power distribution voltage & current, on-off state, infrared, door contact, etc., thus the operation and maintenance staffs can comprehensively know the detailed operation statusof the system;



6. It provides two modes: manual control mode and mobile remote automatic control mode, improving the running reliability, stability of the system;



7. The monitoring system provides four transmission modes: ZIGBEE, Ethernet, GSM and GPRS, achieving more reliable communication transmission;



8. The remote automatic control, real-time data inquiry, alarming value setting, etc. can be achieved via the mobile and Web remote access mode, thus making the maintenance and management of the decorating lamp system more flexible and efficient;



9. It is provided with the functions of remote maintenance, self diagnosis and self-starting.

zigbee slave controller

PLC slave controller

street lamp control

Information you will need to tailor made the smart light control system.



A. Where the smart light system shall be applied: building, industry park, indoor application, household, street lamp.



B. Shall inform where the place of the control shall be applied: the main on/off switch, loop on of each distribution cabinet, or individual lamp or equipments.



C. The no of loops in the power distribution cabinet or the no of lamp to be controlled.



D. The device to perform control: mobile, computer, pad, whether or not a server will be installed.



E. The control function to be realized: smart on/off, operating data, SMS platform, accident alarm, precaution service, equipment safety monitoring, energy saving data and resource, energy report.



F. Means of communication available at site; 3G, 4G, wifi ZigBEE, or communication by cable.



Operation service: KSF enlighten engineering can provide hosting service of the operation of the server and provide 7x24 service, or the clients can set up server of their own and operate by themselves.
