T3M

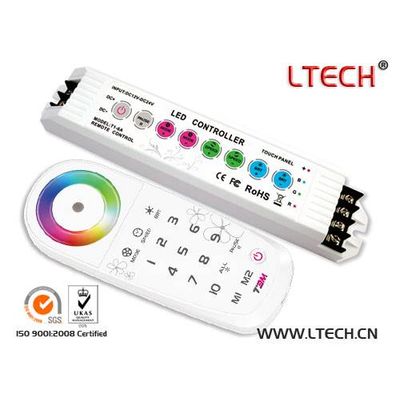

LED RGB RF wireless controller, 5A*3,

LED common cathode RGB controller



Platinum series LED Controller is a universal RGB controller for entire color changing, which adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at present. ABS engineering plastic panel with T-Touch/soft-touch function button and exquisite appearance. It can control all 4-pin 3-loop (common anode/common cathode) LED RGB full color lights, such as LED module, LED strip, LED SMD tape, and high power LED projector, wall-washer, flood light, underwater lamp, etc.



Performance Features

1, Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.



2,256 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.



3,3. RGB Controller has common anode and common cathode for choice,, it can control all the l common



RGB lights



4, 17 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.



5, Can stop at static single color, speed & brightness adjustable at pause status.



6,Working with power repeater to expand power output unlimitedly.



LT-3700RF (Common Cathode)

Input voltage DC12V~DC24V

Max current load 6A/3CHs

Max output power 220W/450W(12V/24V)

Scale levels 256 steps per RGB

Remote control distance 50m with obstacles:100m without obstacles

working temperature -30u00b0C~55u00b0C

Dimension L211u00d7W40u00d7H30(mm)

Package Size L293u00d7W43u00d7H33(mm)

Weight (G.W) 210g

T3M one remote can control many receivers together or individually

led strip, led module, led lamp

very friendly use and popular
